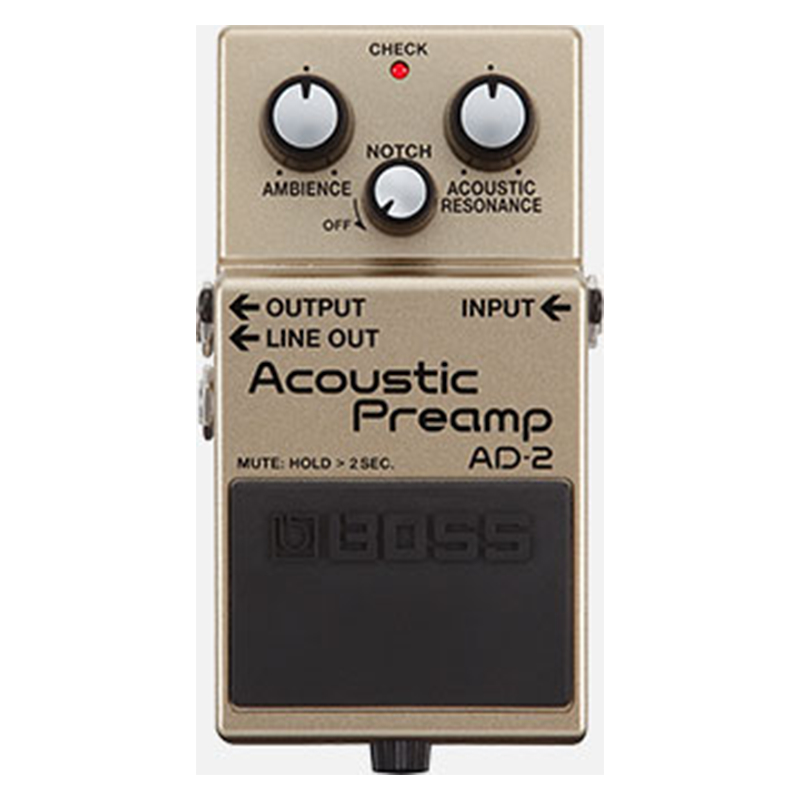

BOSS AD-2 Acoustic Preamp

129.00

Out of stock

SKU: AD-2EXP Category: Brand:

Description

AD-2

NATURAL ACOUSTIC SOUND EVERYWHERE YOU PLAY

With the AD-2 Acoustic Preamp, acoustic-electric guitarists can now experience natural, studio-quality sound while performing on any stage. Equipped with an advanced BOSS sound engine, this compact pedal packs sophisticated processing power that belies its small size and simple, intuitive interface. Acoustic Resonance reproduces the complex resonance characteristics of your unplugged tone, while Ambience provides pro-level reverberation perfectly optimized for acoustic guitar. The AD-2 also features essential stage tools such as a notch filter for feedback control, a balanced DI out for direct connection to a PA, and a convenient mute function for tuning and switching guitars.

SPECIFICATIONS

  • Nominal Input Level:
    -20 dBu
  • Input Impedance:
    10 M ohms
  • Nominal Output Level:
    OUTPUT jack: -20 dBu
    LINE OUT jack: -20 dBu
  • Output Impedance:
    OUTPUT jack: 1 k ohm
    LINE OUT jack: 600 ohms
  • Recommended Load Impedance:
    OUTPUT jack: 10 k ohms or greater
    LINE OUT jack: 600 ohms or greater
  • Bypass:
    Buffered bypass
  • Controls:
    Pedal switch
    ACOUSTIC RESONANCE knob
    AMBIENCE knob
    NOTCH knob
  • Indicator:
    CHECK indicator (Serves also as battery check indicator)
  • Connectors:
    INPUT jack: 1/4-inch phone type
    OUTPUT jack: 1/4-inch phone type
    LINE OUT jack: 1/4-inch TRS phone type
    DC IN jack
  • Power Supply:
    Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
    AC adaptor (sold separately)
  • Current Draw:
    55 mA
  • Expected battery life under continuous use:
    Alkaline: Approx. 6 hours
    * These figures will vary depending on the actual conditions of use.
  • Accessories:
    Owner’s manual
    Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
    Alkaline battery (9V, 6LR61)
  • Option (sold separately):
    AC adaptor (PSA series)

Additional information

Weight 0.45 kg
