Boss DD-3T Digital Delay

Description

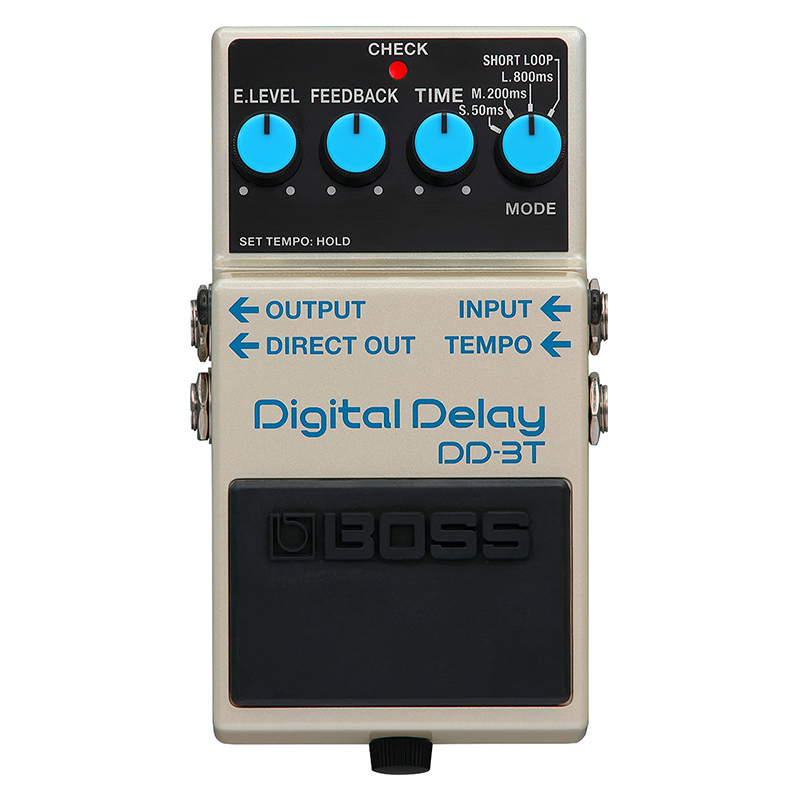

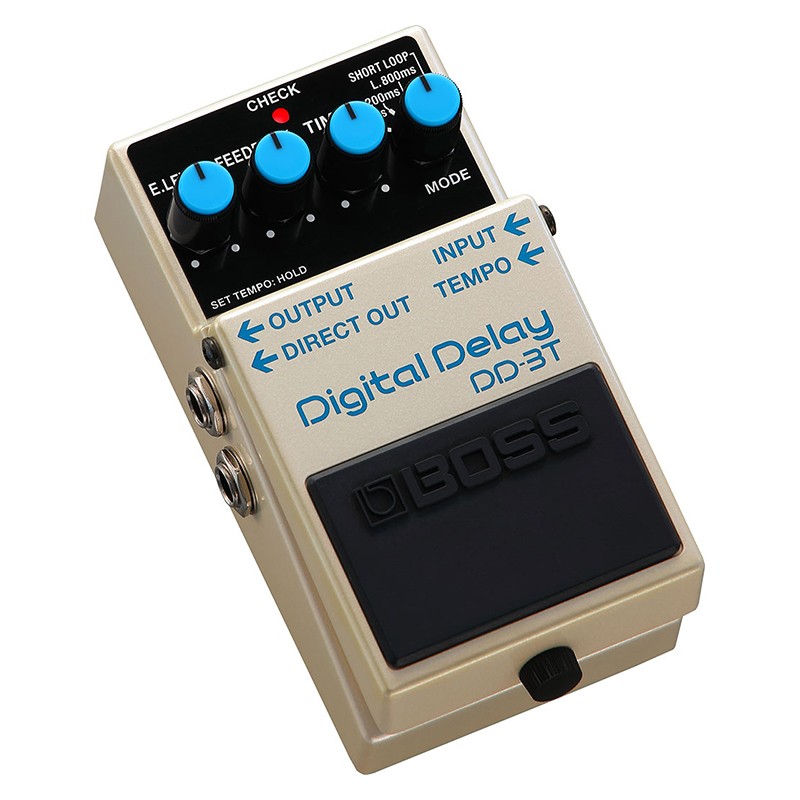

Boss DD-3T Digital Delay

BOSS’s iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we’ve updated the classic stomp with enhanced functionality while fully retaining the original’s sound and control layout. It’s now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.

SPECIFICATIONS

Nominal Input Level
-20 dBu

Input Impedance
1 M ohm

Nominal Output Level
-20 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Bypass
Buffered bypass

Controls
MODE knob
TIME knob
FEEDBACK knob
E.LEVEL(Effect Level) knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
TEMPO jack: 1/4-inch phone type
DC IN jack

Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
45 mA

Expected battery life under continuous use
Alkaline: Approx. 11.5 hours
Carbon: Approx. 3 hours
*These figures will vary depending on the actual conditions of use.

Accessories
Owner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)

Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7

SIZE AND WEIGHT

Width
73 mm
2-7/8 inches

Depth
129 mm
5-1/8 inches

Height
59 mm
2-3/8 inches

Weight (including battery)
420 g
15 oz
