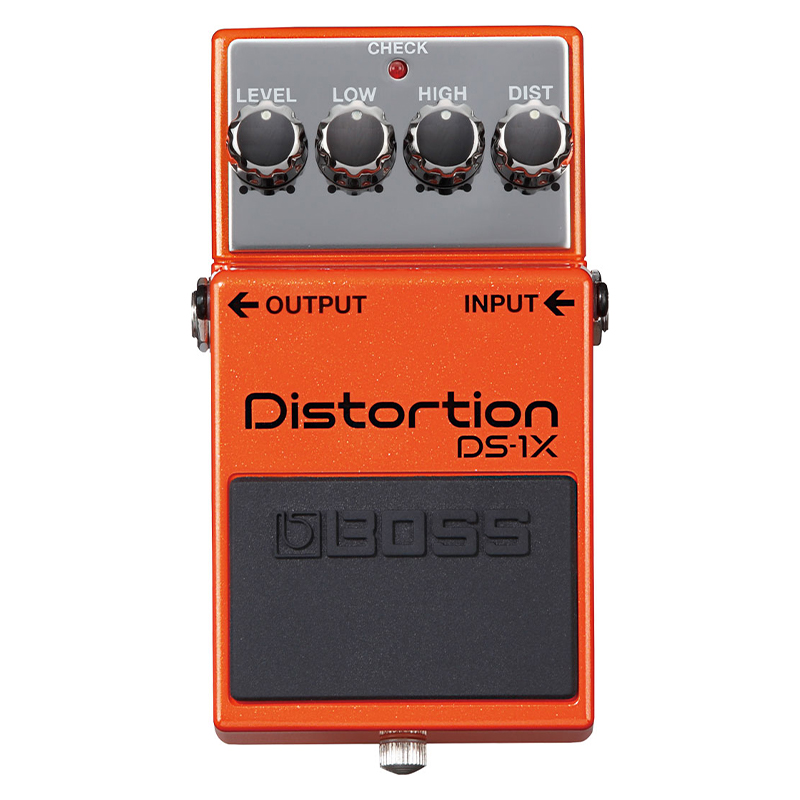

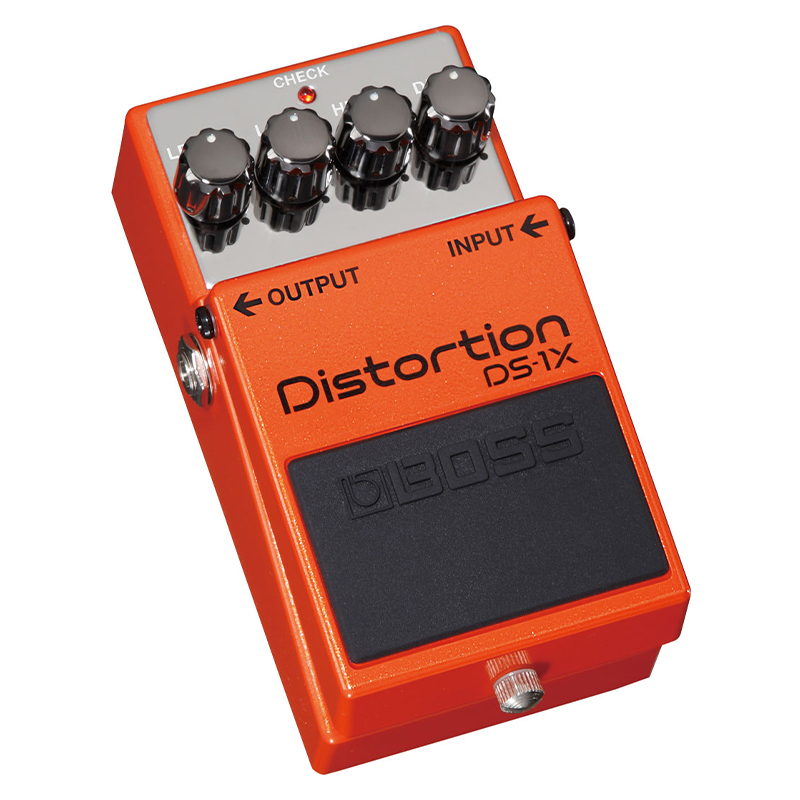

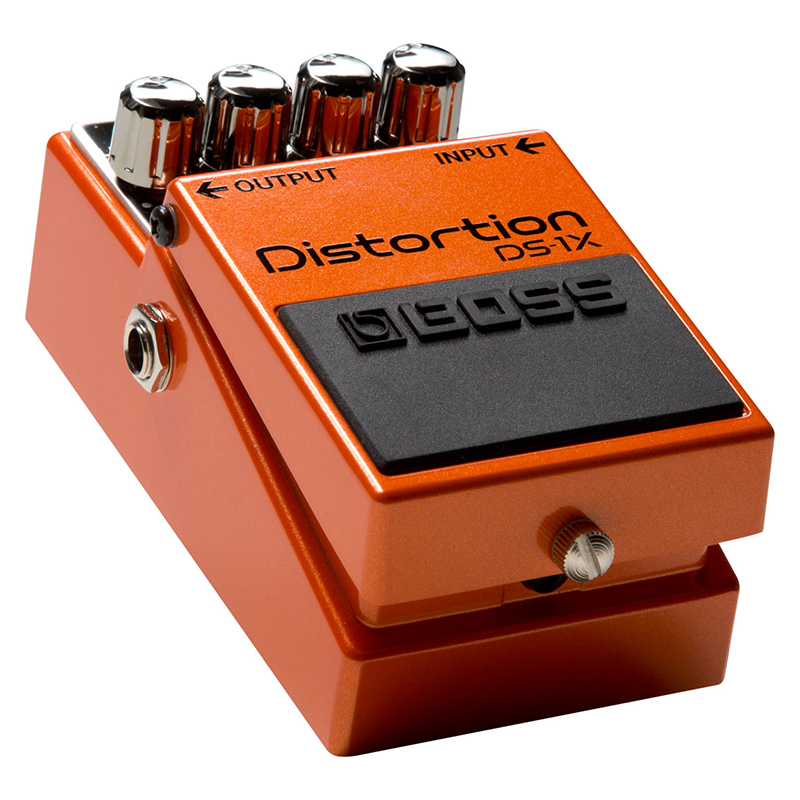

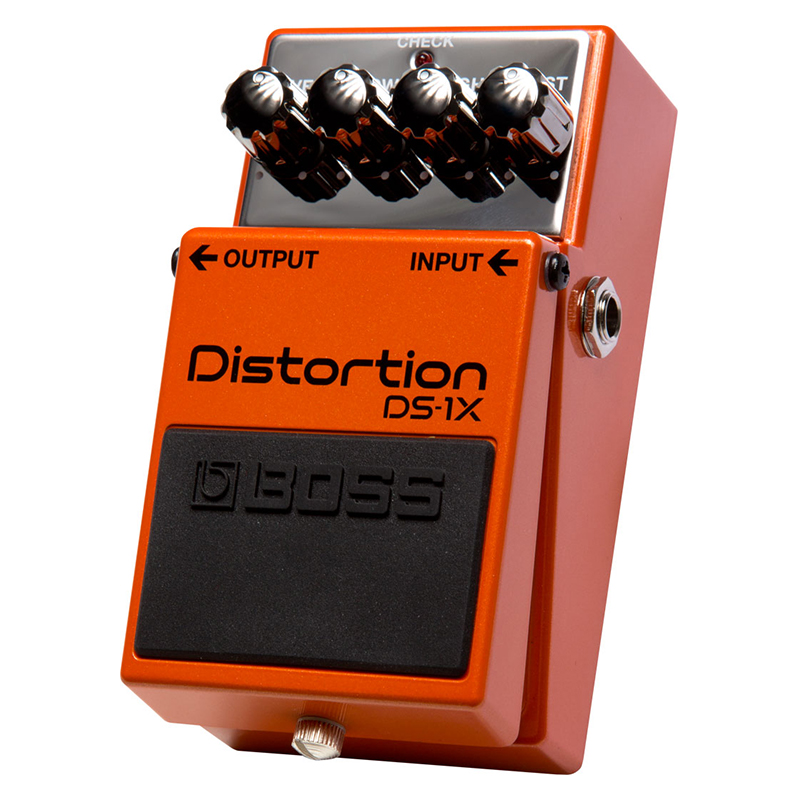

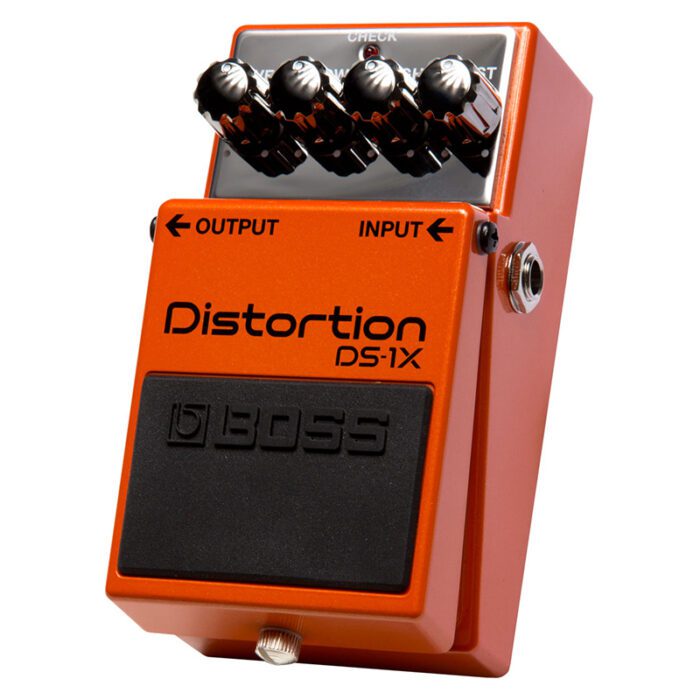

BOSS DS-1X Special Edition Distortion Pedal

Description

BOSS DS-1X Special Edition Distortion Pedal

The DS-1X launches the famous BOSS distortion into a modern era of expression, delivering an unmatched level of performance for guitarists with an ear for tone. This next-generation stomp combines over 35 years of innovation in pedal design with the most advanced technologies, bringing you a completely new tonal experience that’s only possible with the legendary expertise of BOSS. Prepare to be amazed—the inspiring and ultra-responsive DS-1X will change your thinking about distortion pedals forever.

Specifications

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Controls

Pedal switch
LEVEL knob
LOW knob
HIGH knob
DIST knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack
OUTPUT jack
AC adaptor jack (DC 9 V)

Power Supply

Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately)

Current Draw

45 mA

Expected battery life under continuous use

Alkaline: Approx. 9 hours
Carbon: Approx. 2.5 hours

* These figures will vary depending on the actual conditions of use.

Accessories

Owner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”)
Alkaline battery (9V, 6LR61)

Option (sold separately)

AC adaptor (PSA series)

Size And Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight

450 g
1 lbs.
