BOSS GE-7 Equalizer Pedal

Description

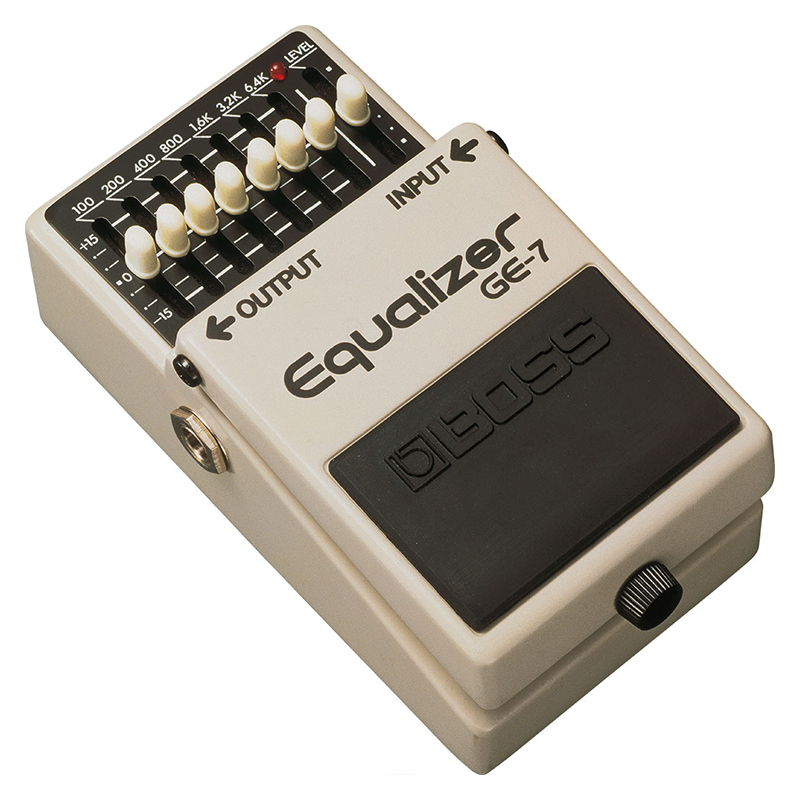

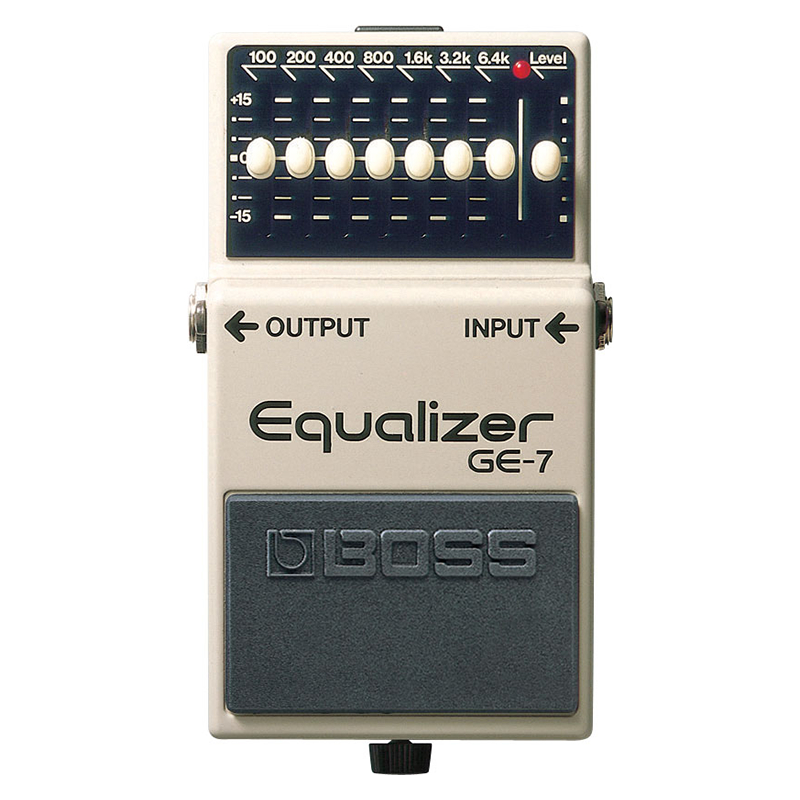

GE-7 Equalizer Pedal

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

Specifications

Nominal Input Level
-20 dBu

Input Impedance
470 k ohm

Nominal Output Level
-20 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohm or greater

Bypass
Buffered bypass

Controls
Level Control knob
Equalizer Control knob
100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz
Pedal switch

Indicator
CHECK indicator (Serves also as battery check indicator)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply
Carbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
10 mA

Expected battery life under continuous use
Carbon: Approx. 37 hours
Alkaline: Approx. 67 hours
*These figures will vary depending on the actual conditions of use.

Accessories
Owner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)
AC adaptor: PSA series

SIZE AND WEIGHT

Width
73 mm
2-7/8 inches

Depth
129 mm
5-1/8 inches

Height
59 mm
2-3/8 inches

Weight (including battery)
450 g
1 lb
