BOSS GX-100 Guitar Effects Processor
Original price was: €559.00.€549.00Current price is: €549.00.
In stock
Description
BOSS GX-100 Guitar Effects Processor
Fusing advanced BOSS tone technologies into a sleek, ultra-modern hardware design, the inspiring GX-100 delivers top-level performance everywhere you play. Explore 23 AIRD amplifiers and over 150 effects derived from the flagship GT-1000, and craft great sounds in seconds with the intuitive color touch display. Up to 15 simultaneous effect blocks provide unlimited tone possibilities, coupled with deep real-time command via onboard footswitches, an expression pedal, and external control support.
| Specifications | |
|---|---|
| Sampling Frequency | 48 kHz |
| AD Conversion | 24 bits + AF method AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters. |
| DA Conversion | 24 bits |
| Processing | 32-bit floating point |
| Effects | 154 Types |
| Maximum Number of Effects | 15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP) *depending on the circumstances |
| Memories | 200 (User) + 100 (Preset) |
| Phrase Loop | 38 sec. (MONO) 19 sec. (STEREO) |
| Tuner Internal Detection | +/-0.1 cent |
| Nominal Input Level | INPUT: -10 dBu RETURN: -10 dBu |
| Maximum Input Level | INPUT: +18 dBu RETURN1: +8 dBu |
| Input Impedance | INPUT: 1 M ohm RETURN: 1 M ohm |
| Nominal Output Level | OUTPUT (L/MONO, R): -10 dBu PHONES: -10 dBu SEND: -10 dBu |
| Output Impedance | OUTPUT (L/MONO, R): 1 k ohm PHONES: 44 ohms SEND: 1 k ohm |
| Recommended Load Impedance | OUTPUT (L/MONO, R): 10 k ohms or greater PHONES: 44 ohms or greater SEND: 10 k ohms or greater |

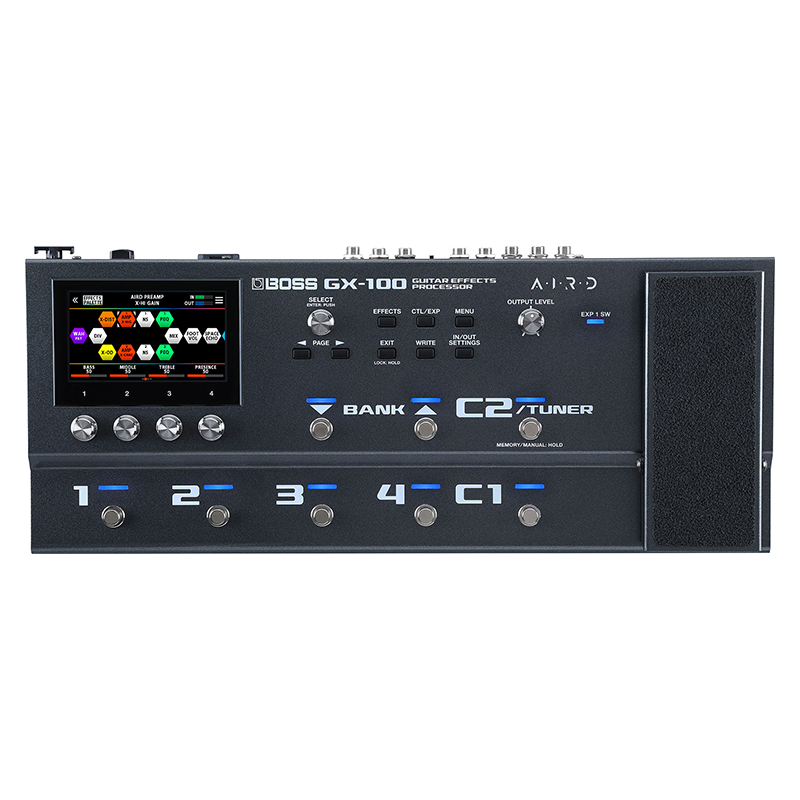

| Controls | BANK DOWN switch, BANK UP switch, CTL1 switch, CTL2/TUNER switch, 1–4 switches, POWER switch, EXP1 switch, GND LIFT switch EFFECTS button, CTL/EXP button, MENU button, EXIT button, WRITE button, IN/OUT SETTINGS button, PAGE button,1–4 knobs SELECT knob, OUTPUT LEVEL knob, EXP1 pedal |
| Display | Color Graphic LCD (480 x 272 dots) Touch screen |

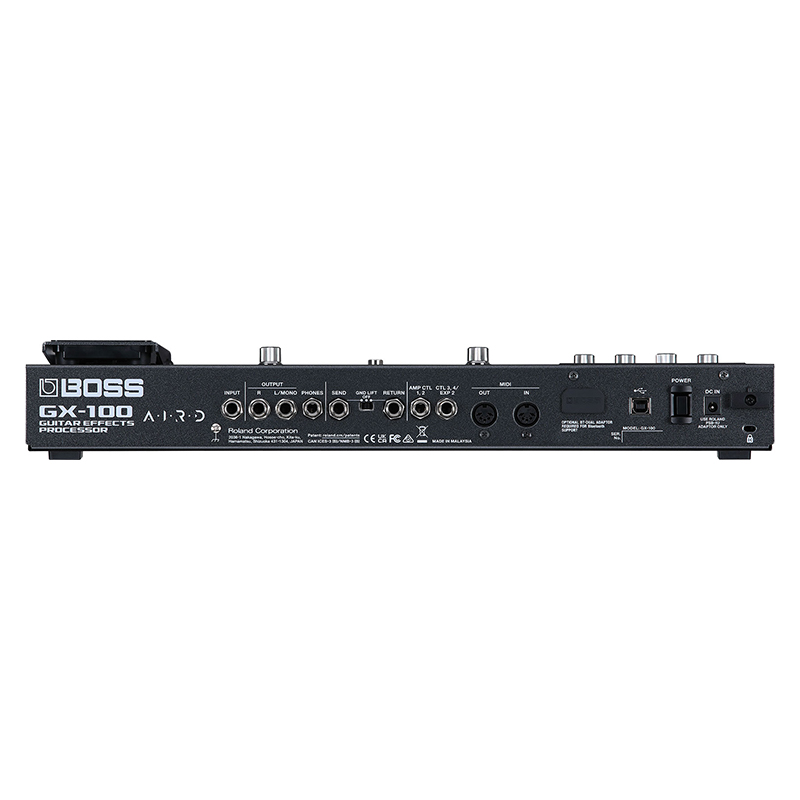

| Connectors | INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type PHONES jack: Stereo 1/4-inch phone type CTL3, 4/EXP2 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type MIDI (IN, OUT) connectors USB COMPUTER port: USB B type Bluetooth ADAPTOR connector: Dedicated connector DC IN jack |
| Power Supply | AC adaptor |
| Current Draw | 1.2 A |
| Accessories | AC adaptor (PSB-1U + AC Cord Set) Owner’s manual Leaflet “USING THE UNIT SAFELY” |
| Options (sold separately) | Footswitch: FS-5U, FS-5L, FS-6, FS-7 Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5 Bluetooth(R) Audio MIDI Dual Adaptor: BT-DUAL Carry Bag: CB-ME80 |
| Size And Weight | |
| Width | 460 mm 18-1/8 inches |
| Depth | 193 mm 7-5/8 inches |
| Height | 73 mm 2-7/8 inches |
| Maximum height | 94 mm 3-3/4 inches |
| Weight | 3.5 kg 7 lbs 12 oz |
Additional information
| Weight | 3.5 kg |
|---|---|
| Brand |
