BOSS HM-2W Heavy Metal Waza Craft Distortion Pedal

Description

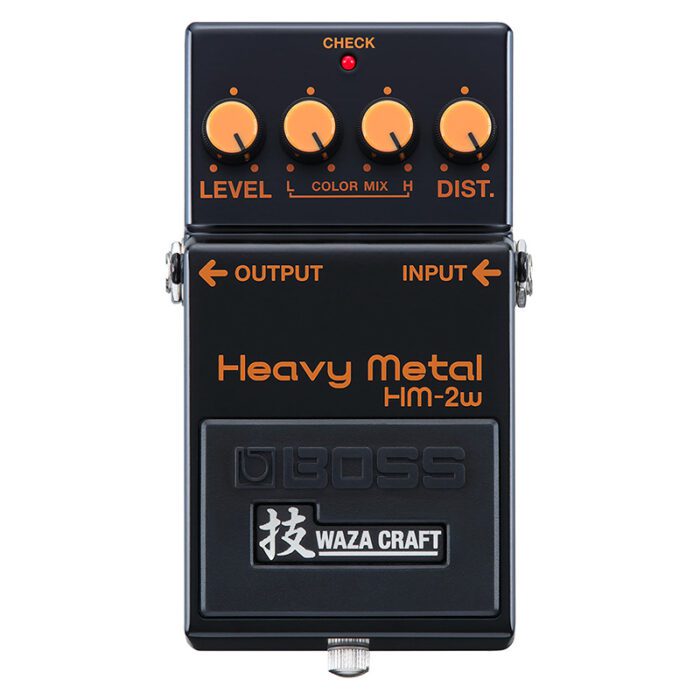

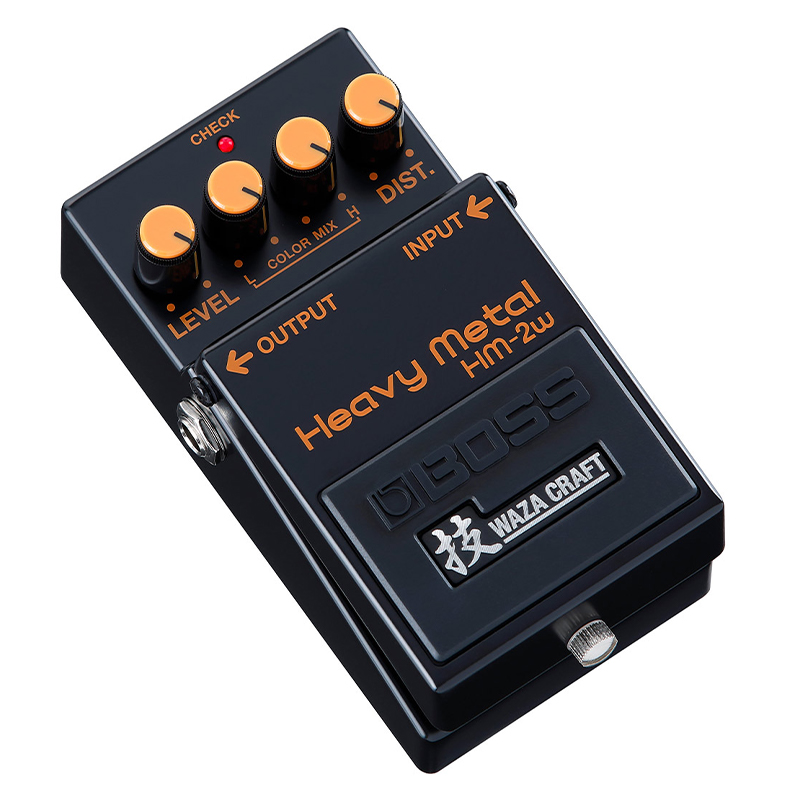

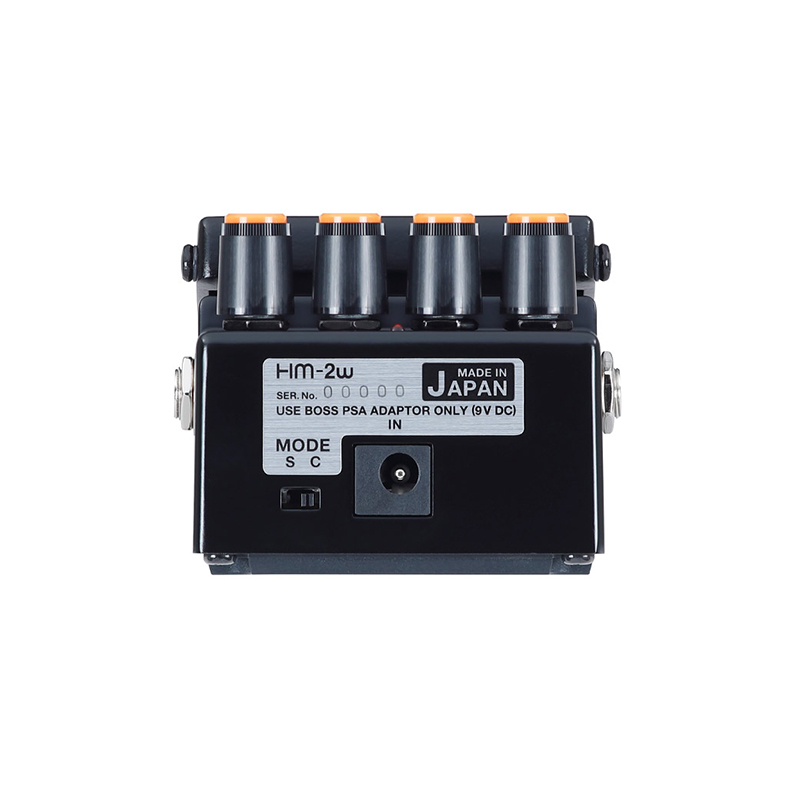

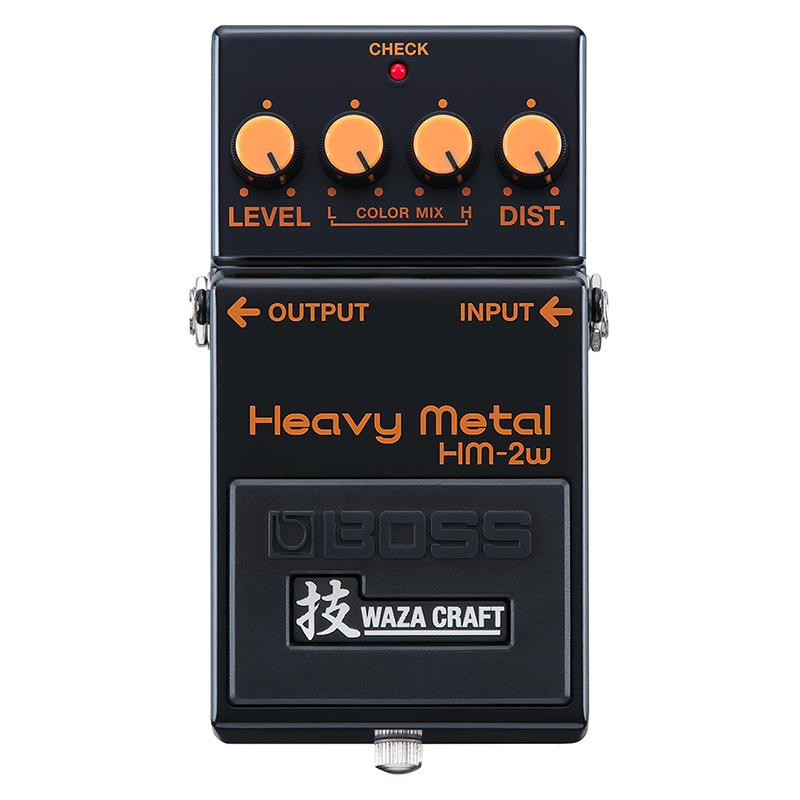

BOSS HM-2W Heavy Metal Waza Craft Distortion Pedal

Produced from 1983 to 1991, the BOSS HM-2 Heavy Metal is a true legend in the history of distortion pedals. Its signature “chainsaw tone” with all knobs maxed is the defining voice of Swedish death metal, and the slightly milder sides of its personality can be heard on tracks from mainstream to shoegaze. After years of requests from hardcore HM-2 fans, the iconic stomp is now reborn three decades later in a special Waza Craft edition. The HM-2W delivers the authentic analog sound of the original in all its glory, coupled with lots of modern refinements for enhanced performance.

Features

• Special edition Waza Craft pedal for the ultimate BOSS tone experience
• Authentic HM-2 appearance
• Standard mode delivers the original HM-2 tone with lower noise and maximized level
• Custom mode provides a more aggressive sound variation with special Waza Craft tuning
• Premium buffer for clean and clear tone when bypassed
• BOSS five-year warranty

Specifications

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

Controls

Pedal switch
Mode switch
DIST. knob
COLOR MIX H knob
COLOR MIX L knob
LEVEL knob

Indicator

CHECK indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Alkaline battery (9 V, 6LR61 or 6LF22) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)

Current Draw

30 mA

Expected battery life under continuous use

Alkaline: Approx. 24 hours
Carbon: Approx. 8 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Owner’s manual
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (9 V, 6LR61 or 6LF22)

Option (sold separately)

AC adaptor: PSA series
