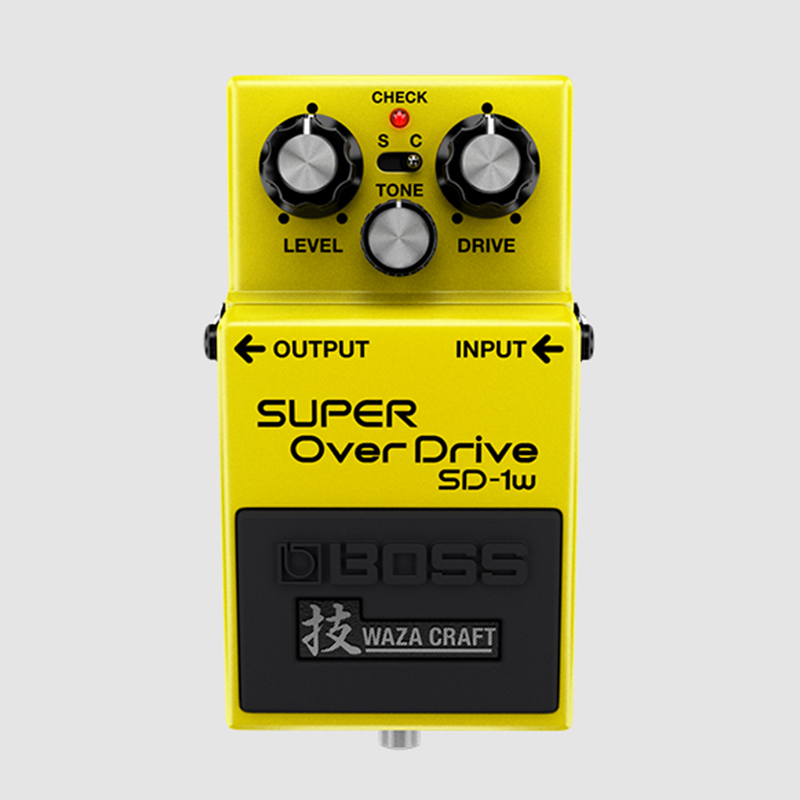

BOSS SD-1W Super Overdrive Waza Craft Series

Description

BOSS SD-1W Super Overdrive Waza Craft Series

Passionately designed by the master engineers at BOSS in Japan, the Waza Craft SD-1W Super Overdrive delivers a premium stomp experience that fans of customized pedal tone will love. Crafted with an ear for highly refined sound, the SD-1W hot rods the famous BOSS overdrive with all-discrete analog circuitry. Standard mode captures the classic SD-1 sound while Custom mode offers new tonal range and gain.

Specifications

Nominal Input Level
-20 dBu

Input Impedance
1 M ohm

Nominal Output Level
-20 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Controls
Pedal switch
Mode switch
LEVEL knob
TONE knob
DRIVE knob

Indicator
CHECK indicator (Serves also as battery check indicator)

Connectors
INPUT jack
OUTPUT jack
DC IN jack

Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (sold separately)

Current Draw
15 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Carbon: Approx. 25 hours
Alkaline: Approx. 42 hours

Accessories
Owner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”)
Carbon-zinc battery (9 V, 6F22)

Option (sold separately)
AC adaptor (PSA series)

Size And Weight

Width
73 mm
2-7/8 inches

Depth
129 mm
5-1/8 inches

Height
59 mm
2-3/8 inches

Weight
430 g
0 lbs. 16 oz.
