Description

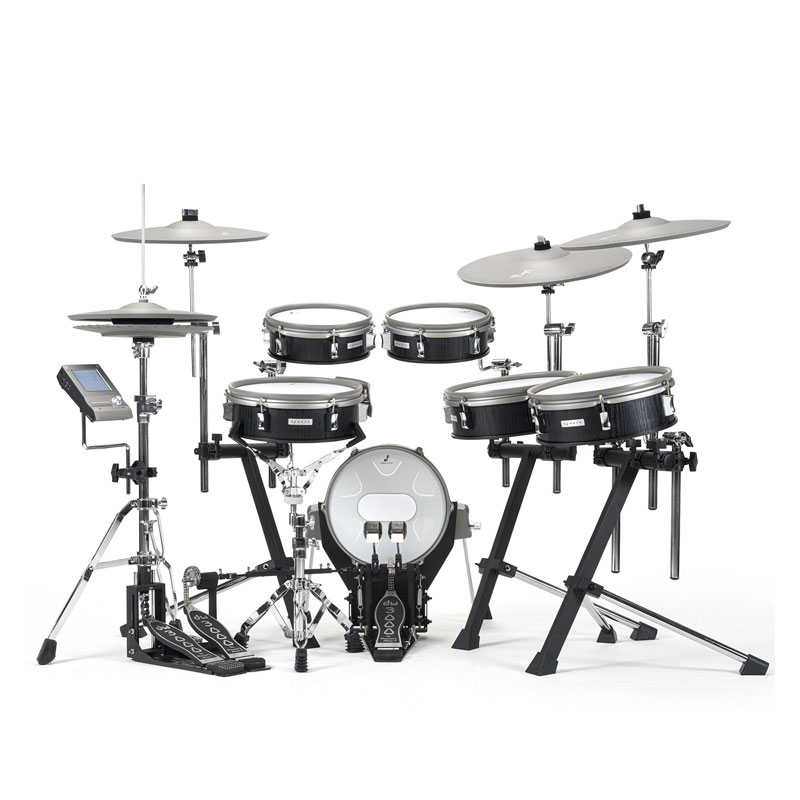

EFNOTE 3X Electric Drum Set
Specifications
Drum / Cymbal Pads
Kick |
EFD-K12P |
- Size: 12 x 4″
- Finish: Black Oak-ish
- Zone: Head
- Sensor: Multi
- Head: Low-rebound double-layered mesh with beater patch
- Connector: Head (TRS Phones)
- Features: Angle-adjustable kick pedal attachment
|
Snare |
EFD-S12P |
- Size: 12 x 4″
- Finish: Black Oak-ish
- Zone: Head / Rim / Side-Rim
- Sensor: Multi
- Head: Double-layered mesh
- Connector: Head/Rim, Side-Rim (2x TRS Phones)
- Features: Monocoque drum shell, Colored hoop rubber, Side-Rim
|
Tom 1 / 2 |
EFD-T10P |
- Size: 10 x 3.5″
- Finish: Black Oak-ish
- Zone: Head / Rim
- Sensor: Multi
- Head: Double-layered mesh
- Connector: Head/Rim (TRS Phones)
- Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
|
Tom 3 / 4 |
EFD-T12P |
- Size: 12 x 4″
- Finish: Black Oak-ish
- Zone: Head / Rim
- Sensor: Multi
- Head: Double-layered mesh
- Connector: Head/Rim (TRS Phones)
- Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
|
Hi-Hat |
EFD-H14 |
-
- Size: 14″ (Top/Bottom)
- Color: Warm gray
- Zone: Bow / Edge / Cup
- Sensor: Multi (360° flat sensing + choke) / Optical
- Connector: 6-pin
- Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
General hi-hat stands compatible with φ12.7 mm (1/2″) hole cymbal can be used.
EFNOTE 3X sound module does not support hi-hat cup zone.
|
Crash 1 / 2 |
EFD-C16 |
-
- Size: 16″
- Color: Warm gray
- Zone: Bow / Edge / Cup
- Sensor: Multi (360° flat sensing + choke)
- Connector: Bow/Edge, Cup (2x TRS Phones)
- Features: Weight simulation, Fine engraved surface
In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.
|
Ride |
EFD-C18 |
- Size: 18″
- Color: Warm gray
- Zone: Bow / Edge / Cup
- Sensor: Multi (360° flat sensing + choke)
- Connector: Bow/Edge, Cup (2x TRS Phones)
- Features: Weight simulation, Fine engraved surface
|
Sound Module: EFD-3X
Trigger Interface |
-
- 3-Zone: Snare, Crash 1/2*, Ride
- 2-Zone: Tom 1/2/3/4, HH, Crash 3
- 1-Zone: Kick
Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.
|
Audio / MIDI Interface |
-
- Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
- Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
- Audio Input: Stereo Mini-Phone (+2dBu Max)
- USB: Micro-B Type USB 2.0 Hi-Speed
Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
MIDI: In/Out
- Bluetooth Audio Input
- Bluetooth MIDI In/Out
- MIDI Out: 5-pin DIN
|
Drum Kits / Instruments |
- Preset Drum Kits: 16 (Editable)
- User Drum Kits: 34
- Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements
- User Inst Library: 50 (Can be stored customized instruments)
|
Edit Parameters |
- Level, Pan, Tuning, Muffling (for each pad)
- 2-Band EQ (for each pad)
- Ambience Effect (8 types)
- Pad Layer
|
Dimensions |
- 106 (W) x 172 (D) x 47 (H) mm
- 700g
Excluding protrusions
|
Power |
- DC 12V, 500mA (Nominal) / 800mA (Max)
|
Tripods / Stands
Tripods |
|
Snare Drum Stand |
- For 12″ to 14″ diameter snare drums
- Geared basket tilter
- Double braced legs
- Tube diameter: φ19.1 mm (3/4″)
- Height adjustment range: 500 — 650 mm
|
Tom Holder |
- 4x Tom Holder Arm
- Geared L-rod tilter
- Knurled carbon steel rod
- L-rod diameter: φ11.5 mm (7/16″)
- Tube diameter: φ22.2 mm (7/8″)
- Height adjustment range: 550 — 900 mm
|
Cymbal Arm |
- 3x Boom Cymbal Arm
- Gearless tilter
- Cable holder
- Tube diameter: φ22.2 mm (7/8″)
- Boom length: 300 mm
- Height adjustment range: 650 — 1250 mm
|
Sound Module Arm |
- 1x Sound Module Arm
- 1x Smartphone Tray
|
Drum Kit Placement
Placement Size |
- Approx. 170 (W) x 110 (D) cm
- Approx. 5.6 (W) x 3.6 (D) feet
Without drum throne
|
Package
Accessories |
- Brake-Out Cable: EFD-MULTI-AX
- Brake-Out Cable: EFD-MULTI-B
- 4x Trigger Cable 3.0 m: EFD-TRS-LL3
- Cable Ties
- Quickstart Guide
Kick pedal, hi-hat stand and drum throne are sold separately.
|
