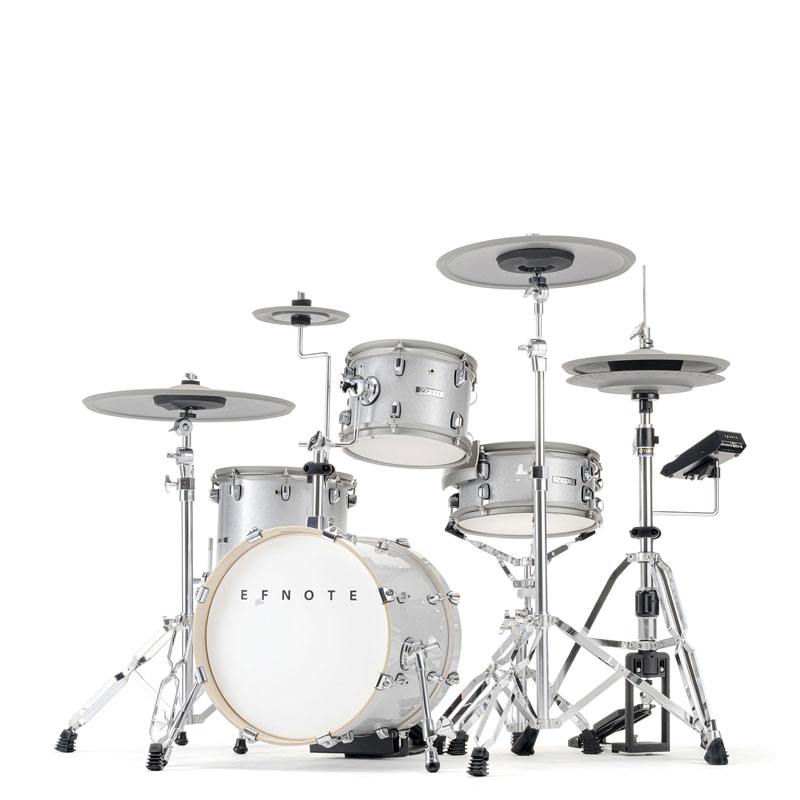

Efnote 5 DELUXE ELECTRIC Drum Set

• Size: 16 x 12″
• Finish: White sparkle
• Zone: Head
• Sensor: Multi
• Head: Double-layered mesh with beater patch
• Connector: Head (TRS Phones)
• Features:Bass drum riser, Wood hoop

• Size: 12 x 5″
• Finish: White sparkle
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Birch shell, Colored hoop rubber, Side-Rim

• Size: 10 x 7″
• Finish: White sparkle
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

• Size: 12 x 12″
• Finish: White sparkle
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

• • Size: 14″ (Top/Bottom)
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke) / Optical
  • Connector: 6-pin
  • Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface

General hi-hat stands compatible with φ12.7 mm (1/2″) hole cymbal can be used.

EFNOTE 5 sound module does not support hi-hat cup zone.

• Size: 16″
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

• Size: 18″
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

• Size: 8″
• Color: Warm gray
• Zone: Bow / Edge
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge (TRS Phones)
• Features: Weight simulation, Fine engraved surface

• • 3-Zone: Snare, Crash 1/2*, Ride
  • 2-Zone: Tom 1/2/3/4, HH, Crash 3
  • 1-Zone: Kick

Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.

EFNOTE 5 uses the Crash 3 cable for the splash cymbal.

• • Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
  • Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
  • Audio Input: Stereo Mini-Phone (+2dBu Max)

• USB: Micro-B Type USB 2.0 Hi-Speed
  Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
  MIDI: In/Out
• Bluetooth Audio Input
• Bluetooth MIDI In/Out
• MIDI Out: 5-pin DIN

• Preset Drum Kits: 17 (Editable)
• User Drum Kits: 83
• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
• User Inst Library: 128 (Can be stored customized instruments)

• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Ambience Effect (8 types)
• Pad Layer

• 106 (W) x 172 (D) x 47 (H) mm
• 700 g

Excluding protrusions

• DC 12 V, 500 mA (Nominal) / 800 mA (Max)

• 1x Tom holder arm
• Geared L-rod tilter
• Knurled carbon steel rod
• L-rod diameter: φ11.5 mm (7/16″)
• Tube diameter: φ22.2 mm (7/8″)
• Height adjustment range: 700 — 900 mm

• 1x Z-rod short
• 1x Z-rod long

• 1x Sound module arm
• 1x Smartphone tray

• For 12″ to 14″ diameter snare drums
• Geared basket tilter
• Double braced legs
• Tube diameter: φ19.1 mm (3/4″)
• Height adjustment range: 500 — 650 mm

• Boom cymbal arm
• Geared tilter
• Cable holder
• Middle tube diameter: φ19.1 mm (3/4″)
• Boom length: 400 mm
• Height adjustment range: 800 — 1,500 mm

• Approx. 140 (W) x 90 (D) cm
• Approx. 4.6 (W) x 3.0 (D) feet

Without drum throne

• Brake-out cable: EFD-MULTI-A5
• Brake-out cable: EFD-MULTI-B
• 5x Trigger cable 3.0 m: EFD-TRS-LL3
• Cable ties
• Quickstart guide

Snare drum stand and cymbal stand are optional.

Kick pedal, hi-hat stand and drum throne are sold separately.
