Description

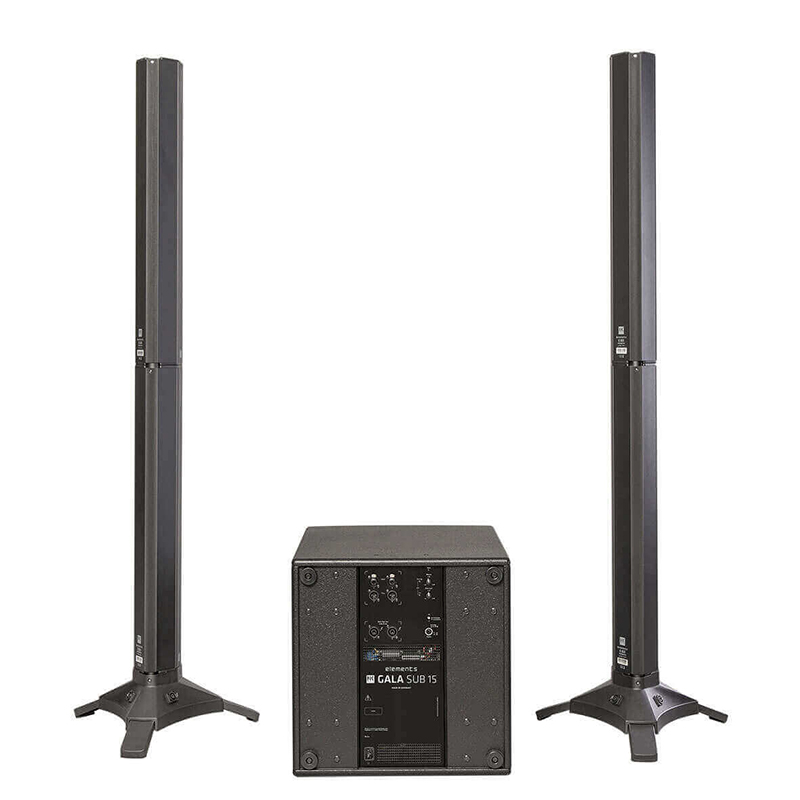

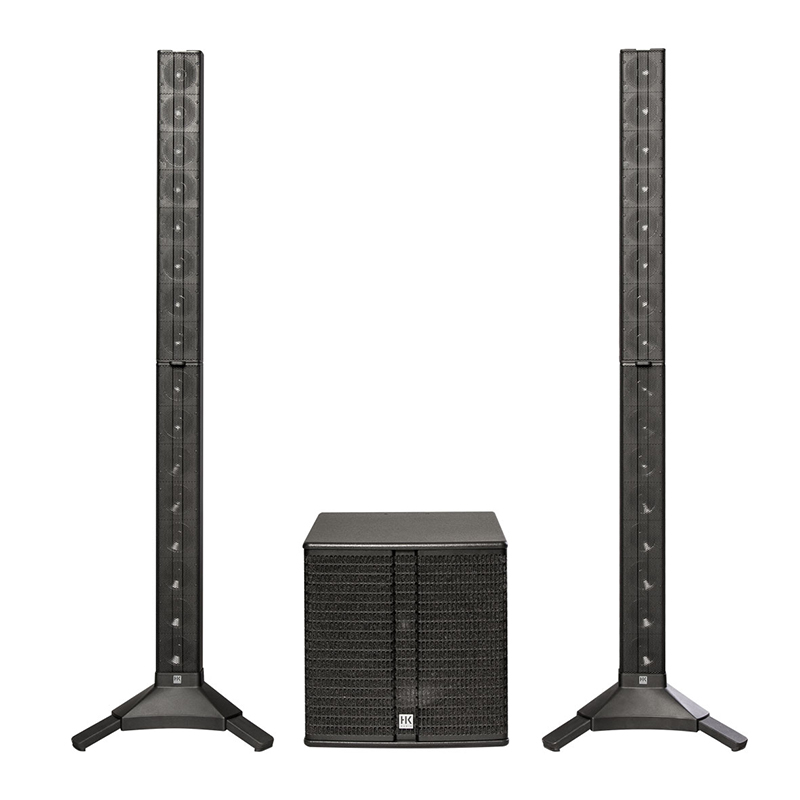

HK AUDIO Elements Gala System 2000W
Active stereo line-source PA, 1x ELEMENTS GALA SUB 15, 4x ELEMENTS E 835, 2x EF 45, 2x EP 2, 2x 10m LS, 2.000-watt peak power (calc.)
Technical Data
Product Class | Stereo line-source PA |
Power Rating | 670 W (RMS) |
Peak power (calc.) | 2000 W |
Amplifier | Class D |
Active protection circuits | 24 dB-Subsonic-Filter, Multiband- Peak- und RMS-Limiter |
Optional accessories | ELEMENTS GALA SUB 15 ROLLER BAG, ELEMENTS SOFT BAG, ELEMENTS BASE BAG |
Weight | 55,6 kg / 122.6 lbs. |
E 385
Power-handling nominal (RMS) | 300 W |
Nominal impedance | 8 ohms |
Sensitivity 1W/1m | 100 dB (half space) |
Frequency response -10 dB | 140 Hz – 20 kHz, via active system |
Speaker | 8 x 3,5″ broadband |
Directivity | 70° horizontal |
Crossover frequency | 140 Hz, 12 dB/oct. |
Connections | 1 x E-Connect-In |
1 x E-Connect-Out | 1 x E-Connect-Out |
Dimensions (WxHxD) | 11 x 74,5 x 12 cm (exkl. E-Connect- sleeves) |
Weight | 4,5 kg, 9.9 lbs |
Elements Gala Sub 15
Max SPL peak | 129 dB@10%THD, Halfspace |
Frequency response | 44 Hz – 130 Hz, 24 dB/oct. (+/- 5 dB) |
LF Speaker | 1x 15″ |
Inputs | 2x XLR/ 1/4″ (6.35 mm) combo inputs |
Outputs | 2x XLR Thru, 2x Mid/High Out (Speakon) |
Handles | 2x HK Audio MultiGrip |
Enclosure | MDF |
Grille | Metal grille backed with black acoustic foam |
Finish | Black acrylic enamel |
Optional accessories | ELEMENTS GALA SUB 15 ROLLER BAG |
Dimensions (WxHxD) | 48 x 48,5 x 59,5 cm |
Weight | 30,2 kg / 66.6 lbs |
Additional information
Weight | 34.6 kg |
---|---|
