HK AUDIO LINEAR 3 115 FA 15″ Active Speaker
€999.00
In stock
Description
HK AUDIO LINEAR 3 115 FA 15″ Active Speaker
Compared to the 12″ version, the active 15″/1″ speaker offers even more depth with the same features. Especially in standalone use, it impresses with powerful bass and a balanced, crystal-clear sound across the entire frequency spectrum.
| Specifications | |
|---|---|
| Max. SPL @ 10% THD | 126 dB half space (58 Hz – 12 kHz averaged) |
| Max. SPL peak @ 10 % THD | 135 dB half space |
| Frequency response +/-3 dB | 58 Hz – 16 kHz |
| Frequency response -10 dB | 49 Hz – 18 kHz |
| Power amp output (peak power) | 1200 W |
| Preamp | DSP (Time Alignment) |
| Amp type | Class D – biamped |
| Active protective circuits | Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters |
| Low-/mid speaker | 1x 15″, 2.5″ voice coil |
| HF driver | 1″, 1″ voice coil |
| Horn directivity | 90° x 55° CD horn |
| Active crossover frequency | 2.3 kHz FIR X-over with 72 dB/oct. |

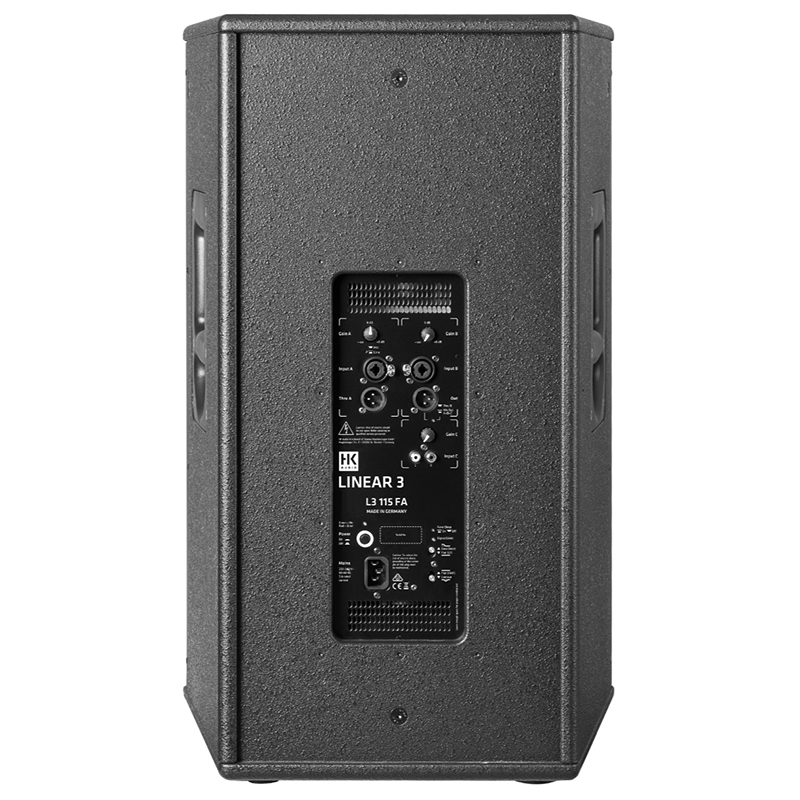

| Analog inputs | 2x XLR combo balanced, 1x Stereo RCA |
| Analog outputs | 2x XLR Thru balanced, 1x XLR Mix Out |
| Input sensitivity | +4 dBu @ Gain center-notched |
| Sensitivity switch | Line/Mic Input A |
| Filter presets | 2 EQ switches: Bass Boost/Flat & Flat/Contour |
| Mains connector | 1x IEC socket with V-Lock cord retainer |
| Power consumption | 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065 |
| Pole mount | DuoTilt 3°/7° |
| Rigging points | 4x M8 (AP-8) |
| Carrying handles | 2x MultiGrip |
| Housing | 16 mm MDF |
| Finish | Black acrylic enamel |

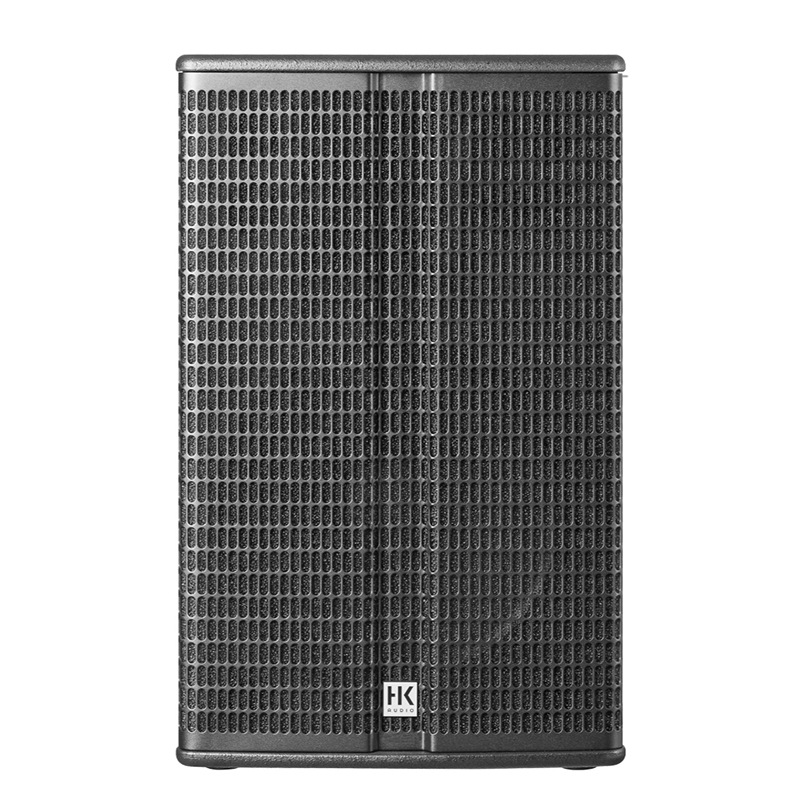

| Front grille | 2 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 44 x 69 x 44.5 cm 17-21/64 x 27-11/64 x 17-33/64″ |
| Weight | 27.9 kg / 61.5 lbs |
