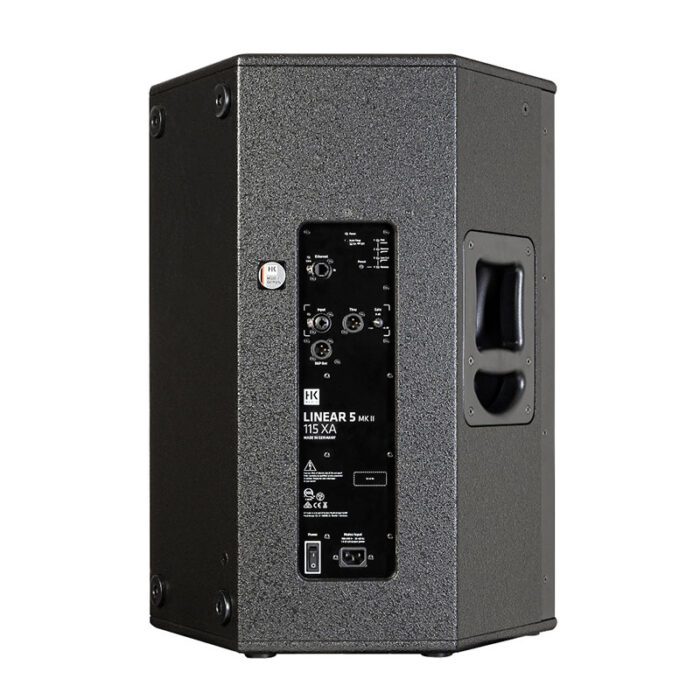

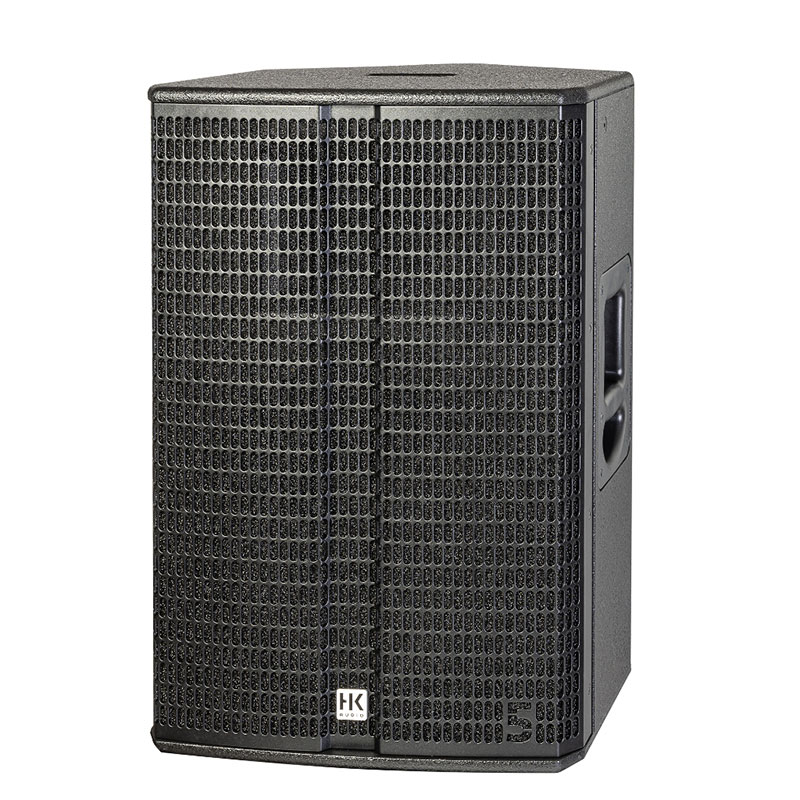

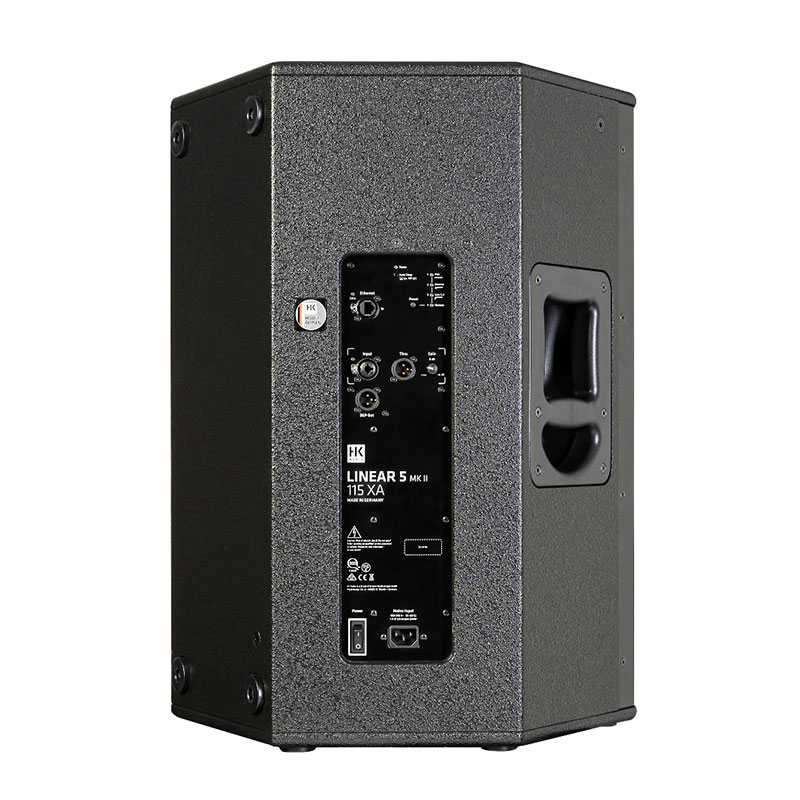

HK AUDIO LINEAR 5 MK II 115 XA Active Speaker

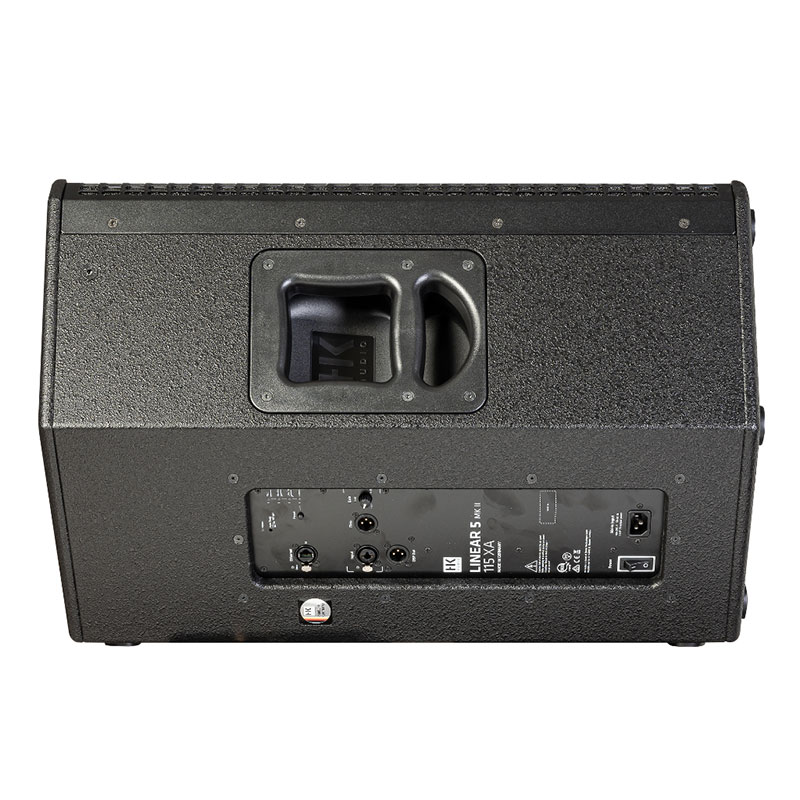

The LINEAR 5 MK II XA models are compact, flexible, multifunctional mid/high units with impressive range and crystal clear, assertive sound. Due to the multifunctional enclosure shape with slanted monitor edge, they can be operated as low-feedback stage monitors or as powerful mid/high system units in conjunction with the subwoofers.
Max. SPL @ 10 % THD | 130 dB half space (70 Hz – 12 kHz averaged) |
Max. SPL Peak @ 10 % THD | 138 dB half space |
Frequency response +/-3 dB | 64 Hz – 12 kHz |
Frequency response -10 dB | 59 Hz – 19 kHz |
Power amp output (RMS/Peak) | 600 / 1,200 W |
Amplifier type | Class D – bi-amped |
Low/mid speaker | 1 x 15″, 3″ voice coil |
HF driver | 1″, 1.7″ voice coil |
Horn characteristics | 70° x 50° CD horn, rotatable |
Active x-over frequency | 1.6 kHz FIR X-over with 72 dB/oct. |
Maximum input level | 20 dBu |
Analogue inputs | 1 x XLR combo balanced |
Analogue Thru | 1 x XLR balanced |
DSP Out | 1 x XLR balanced |
Network port | EtherCON RJ45, 1 x In |
Filter presets | Flat, Monitor, Low Cut, Remote |
Remote software | DSP CONTROL (Windows, Mac OS) |
DSP functions | Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute |
Sample rate | 48 kHz |
System latency | Less than 2 ms |
Mains connection | 1x IEC connector with V-Lock securing system, 100-240 V |
Power consumption | 1 A / 100–240 V nominal according to EN 62368-1 |
Setup angle | 31° |
Pole mount | DuoTilt 3°/7° |
Rigging points | 3x M8 (AP-8) |

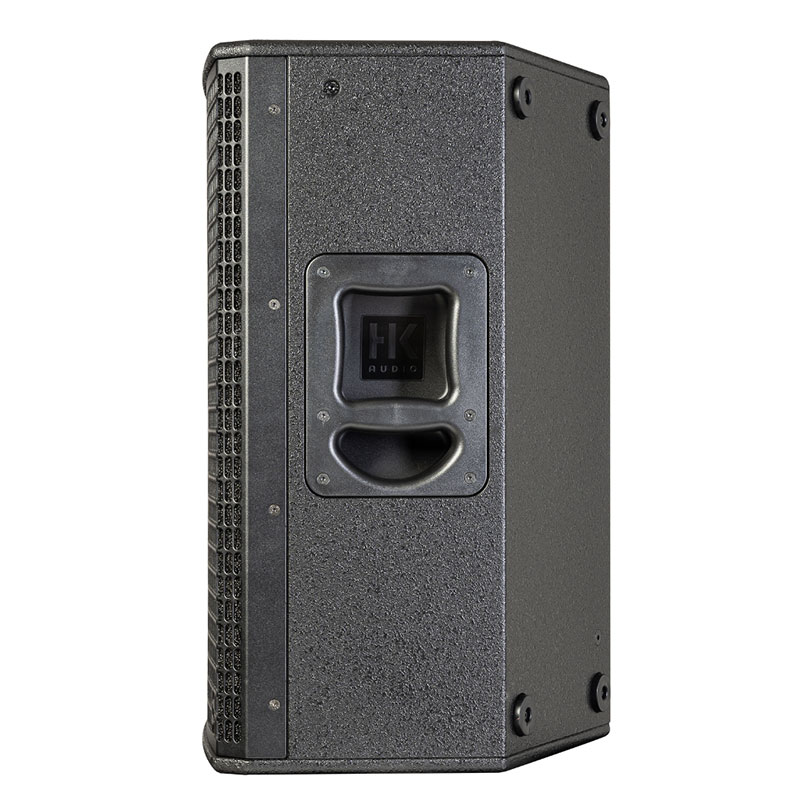

Carrying handles | 2 x MultiGrip, 1 x SingleGrip |
Housing | Hybrid (birch multiplex/MDF) |
Surface | Black acrylic enamel |
Front grille | 2 mm metal grille backed with black acoustic foam |
Dimensions (WxHxD) | 45 x 68.5 x 42 cm 17-23/32 x 26-31/32 x 16-17/32″ |
Weight | 27.6 kg / 60.85 lbs |
