HYPER TOP 12A Bi-Amped Active Speaker Class D-AB
€339.00
In stock
Description

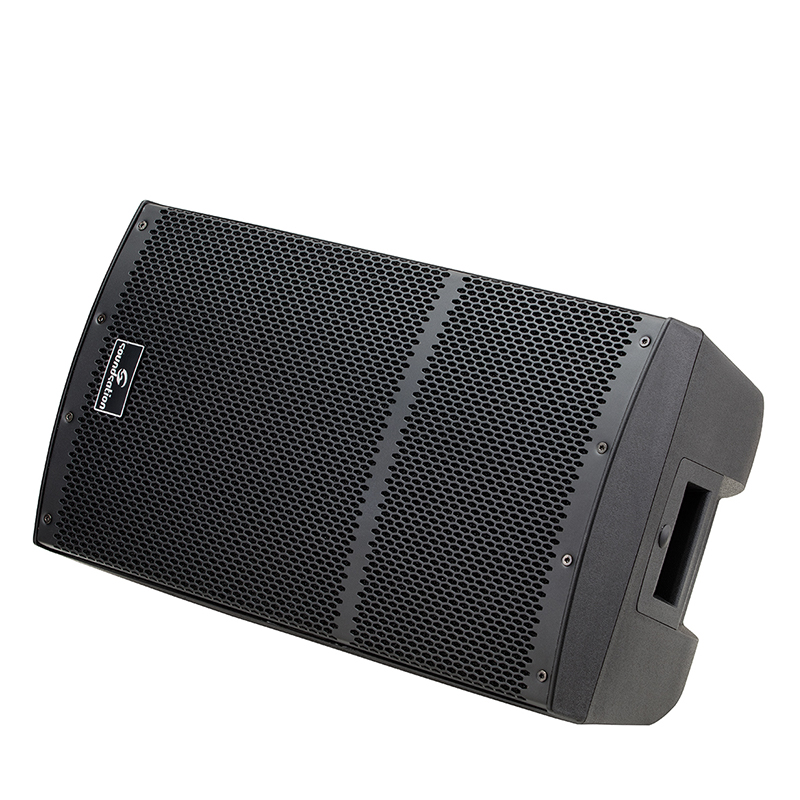

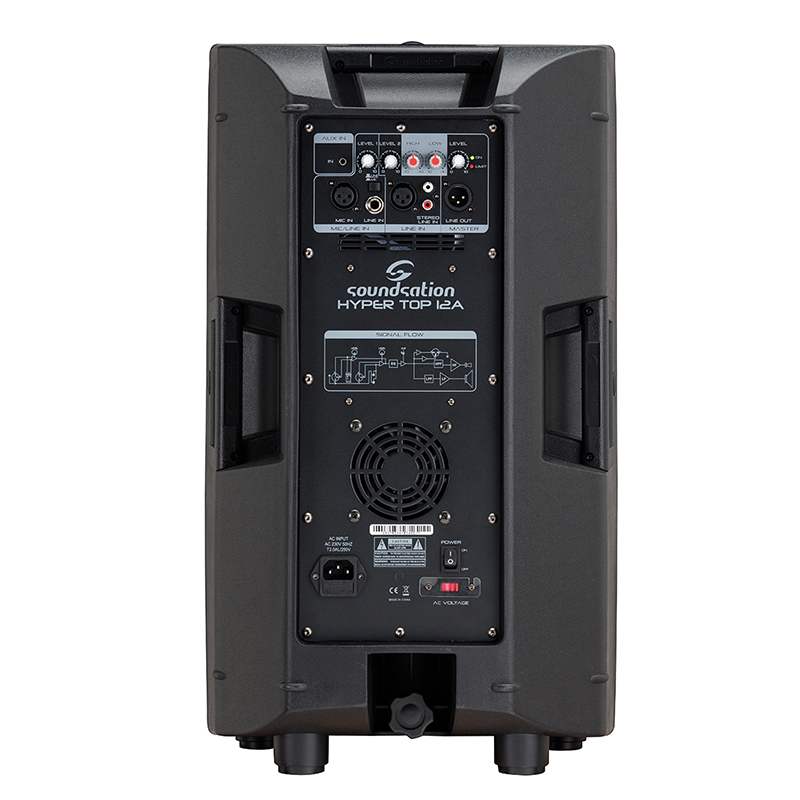

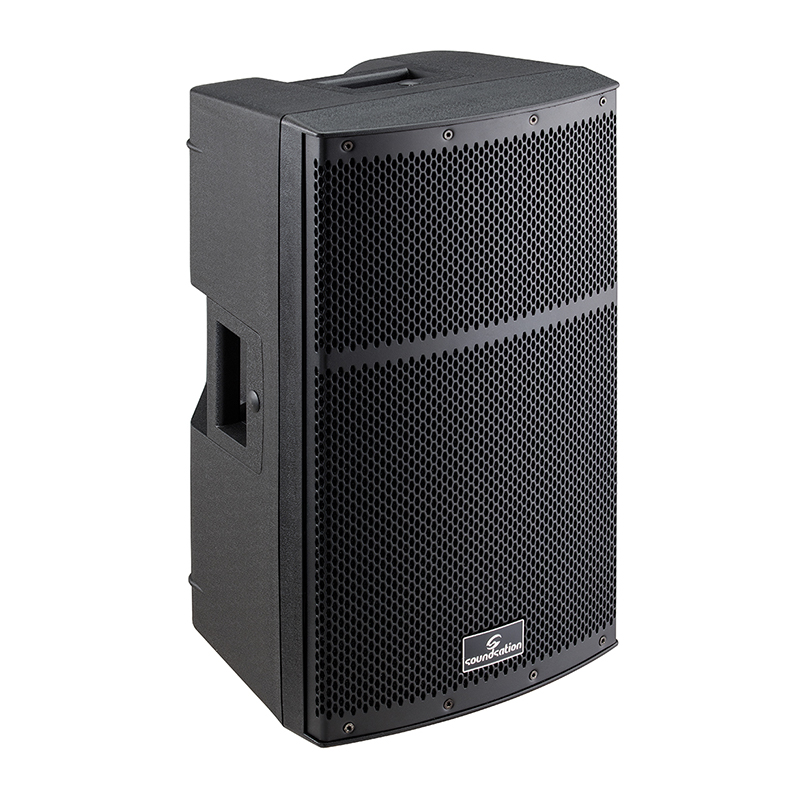

HYPER TOP 12A Bi-Amped Active Speaker Class D-AB
HYPER series is the result of years of experience gathered by Soundsation in Portable Sound systems.This speaker line is built with a sturdy, lightweight and stylish polypropylene enclosure with full metal grille and acoustic foam to protect the transducers. The cutting-edge design, according to latest industry standard, offers both a great look and an optimal sound quality. All models are equipped with a Class D amp and switching power supply to deliver massive power with great efficiency and light weigh. (with the exception of the 6”). MIC and Line inputs to connect all major input sources, being microphones, mixers or media players. Featuring four M8 flying points distibuted on each side, 1 handle on top and a standard D36mm pole mount hole it is ideal for both fixed installation or portable applications.
SPECIFICATIONS
| 2-Way active bi-amped speaker | |
| Woofer | 12″ with 2.5″ voice coil |
| Compression driver | 1.35” voice coil, 1” throat |
| Horn | 90° x 60°, symmetric |
| Frequency Response [- 10dB] | 48Hz – 19KHz |
| Frequency Response [- 3dB] | 53Hz – 19KHz |
| Max SPL | 119dB |
| Sensitivity | 95dB |
| Amplifiers | Class-D (Low freq.); Class-AB (High Freq.) |
| Power (Peak/Rated) | 1000W (800+200W) / 500W (400+100W) |
| Crossover | 2.8KHz, 24dB/Oct. |
| EQ | High (2.5KHz, +/- 12 dB); Low (150Hz, +/- 12 dB) |
| LEDs | Power On (Green), Clip (Red) |
| Power Requirement | 230Vac – 50 Hz |
| Minimum Power Consumption | 250W |
| Power Connector | VDE with T2A-250V Fuse |
| Dimensions (WxHxD) | 355 x 611 x 350 mm |
| Weight | 14,6 Kg |
Additional information
| Weight | 14.7 kg |
|---|---|
