IK Multimedia iRig Pro Duo I/O Audio interface

Original price was: €219.00.Current price is: €199.00.

In stock

SKU: IRIGPRODUOI/O Category:

Description

IK Multimedia iRig Pro Duo I/O Audio interface

. Whether you’re on location or on vacation, iRig Pro Duo I/O packs everything you need to capture high-quality music and audio into an ultra-portable, easily packable box. Say hello to a full-featured studio in the palm of your hand.

Specifications

Microphone Input

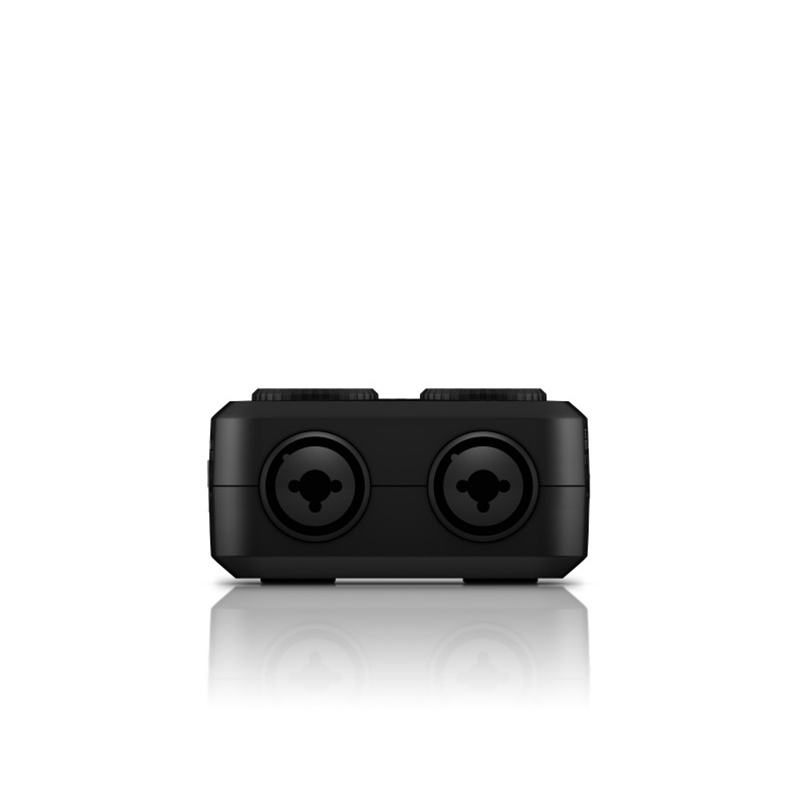

  • Microphone Input: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
  • Microphone Input Level: from 6 mVpp to 1.4 Vpp
  • Microphone Input Impedance: 3,2 kOhms
  • Gain Range: 50 dB
  • Phantom Power: +48V ± 4V
  • Frequency Response: 20 Hz to 20 kHz (+-1.5dB)
  • Input Noise: -103 dB(A), -97 dB RMS

Instrument Input

  • Instrument Input: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
  • Instrument Input Level: from 30 mVpp to 6.9 Vpp
  • Instrument Input Impedance: 1 MOhms
  • Gain Range: 27 dB
  • Frequency Response:
    • from 2 Hz to 21 kHz (-3dB) Gain @ min
    • from 5 Hz to 21 kHz (-3dB) Gain @ max
  • Input Noise:
    • -104 dB(A) Gain @ min
    • -102 dB(A) Gain @ max

Line Output

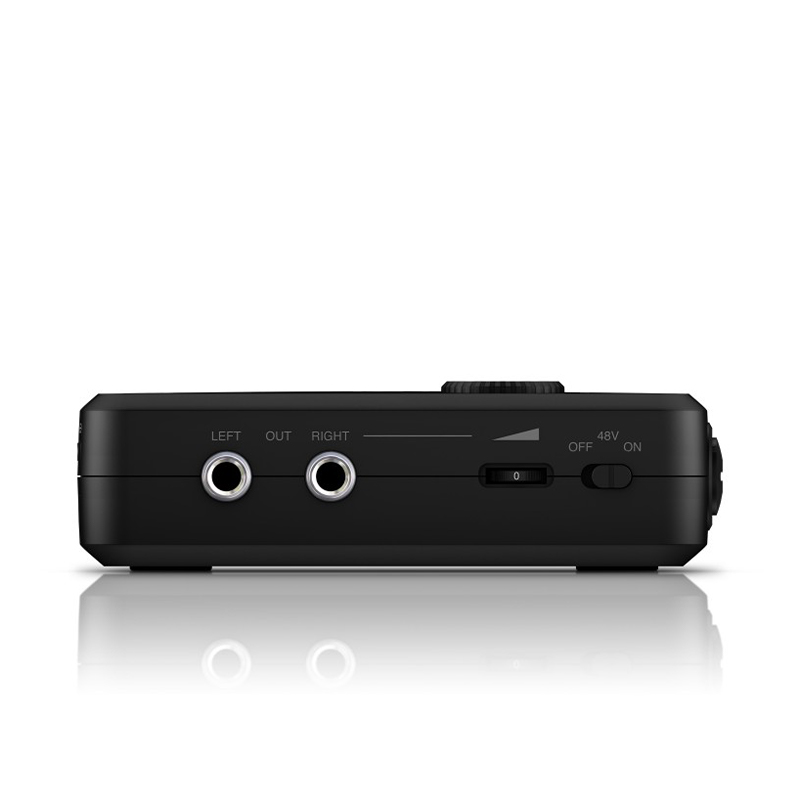

  • Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
  • Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
  • Maximum Output Level: +16 dBu into 600 Ohms balanced load
  • Frequency Response: from 10 Hz to 21 kHz (-3dB)
  • Output Dynamic Range: 106 dB(A)
  • Output Impedance: 150 Ohms balanced

Common

  • AD and DA Resolution: 24-bit
  • Sampling Rate: 44.1 kHz and 48 kHz
  • Power: USB bus power, battery power (2xAA – included), or DC power supply (9VDC, from 500mA up, positive outside – not included)
  • Metering: Multicolor LED)
  • Size: 75mm/2.95″ x 127mm/5″ x 37mm/1.46″
  • Weight: 197.2g/6.96oz (batteries excluded)
  • Battery Life:
    • Recording – Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
    • Playback – Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)

*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follows: music playing, phantom power OFF.

Package includes

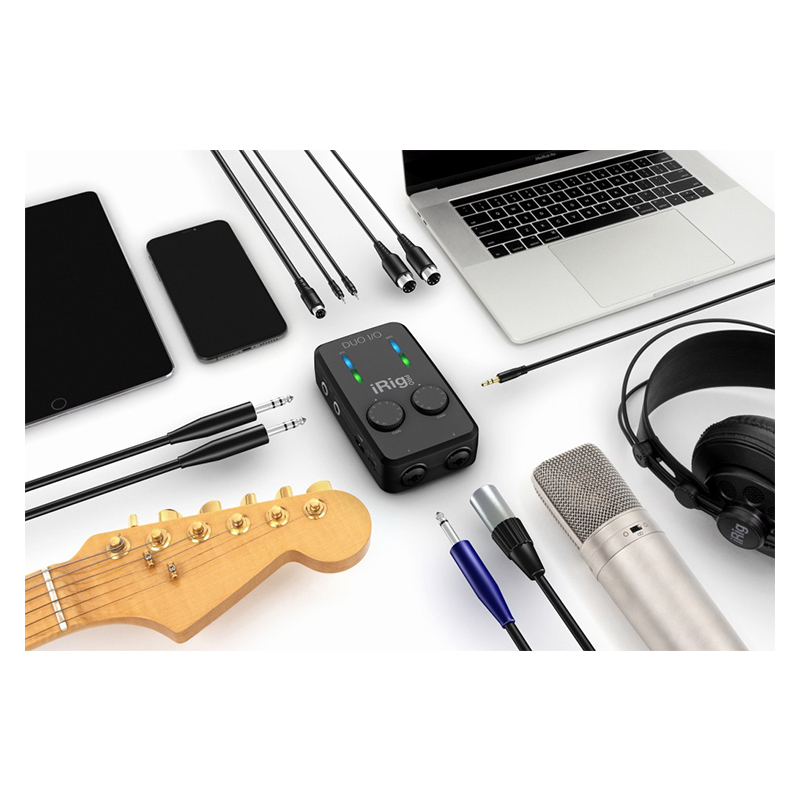

  • iRig Pro Duo universal dual channel Audio-MIDI interface
  • Lightning to Mini-DIN connection cable (60cm/23.62″)
  • USB-C to Mini-DIN connection cable (60cm/23.62″)
  • USB to Mini-DIN connection cable (60cm/23.62″)
  • 2x 2.5mm TRS male to MIDI female adapter (10cm/3.9″)
  • 2 x 1.5V AA Battery

Dimensions

  • Size: 75mm/2.95″ x 127mm/5″ x 37mm/1.46″
  • Weight: 197.2g/6.96oz (batteries excluded)

Additional information

Weight 0.19 kg
