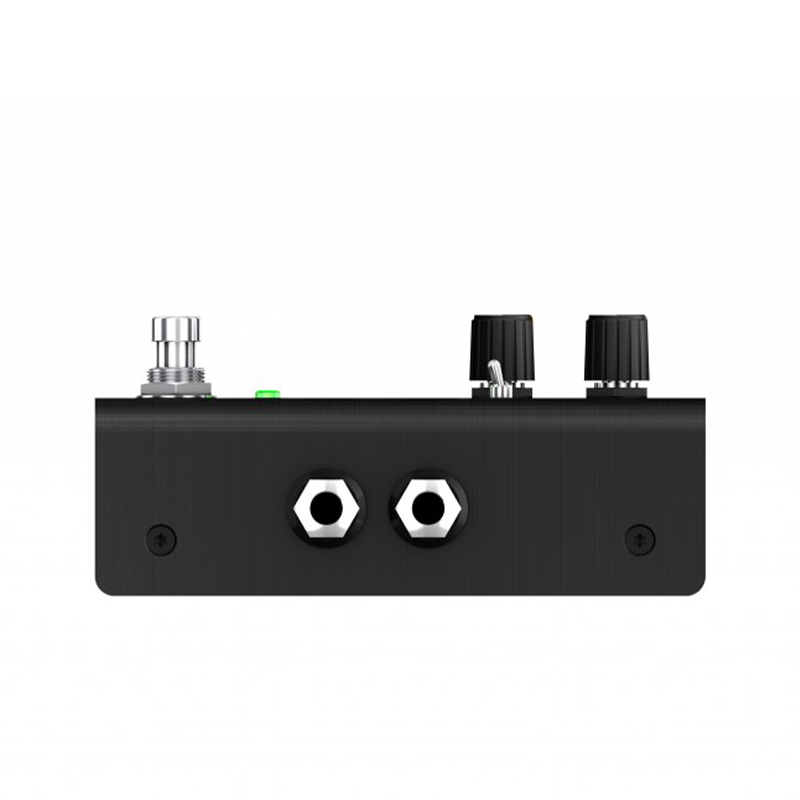

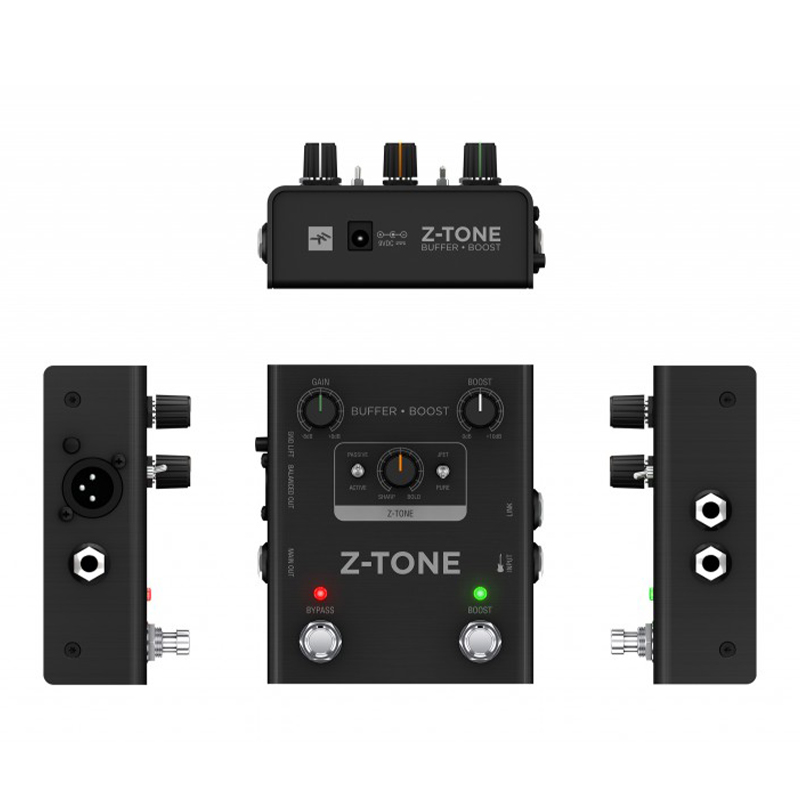

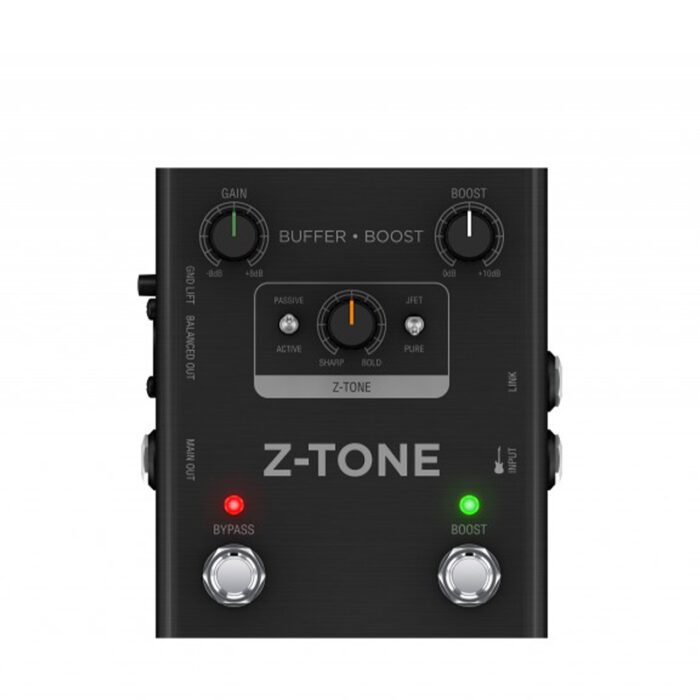

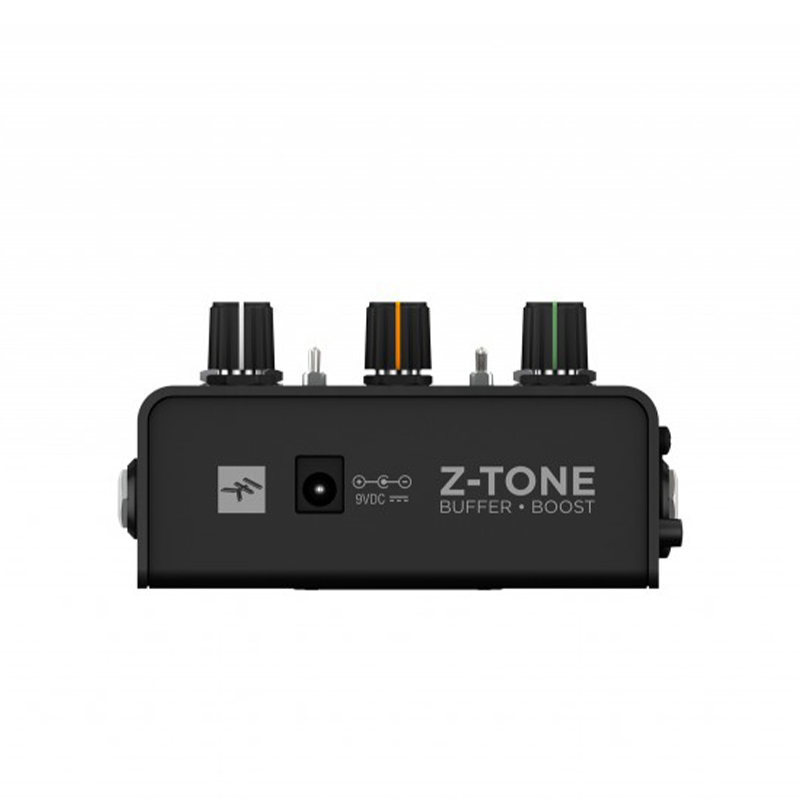

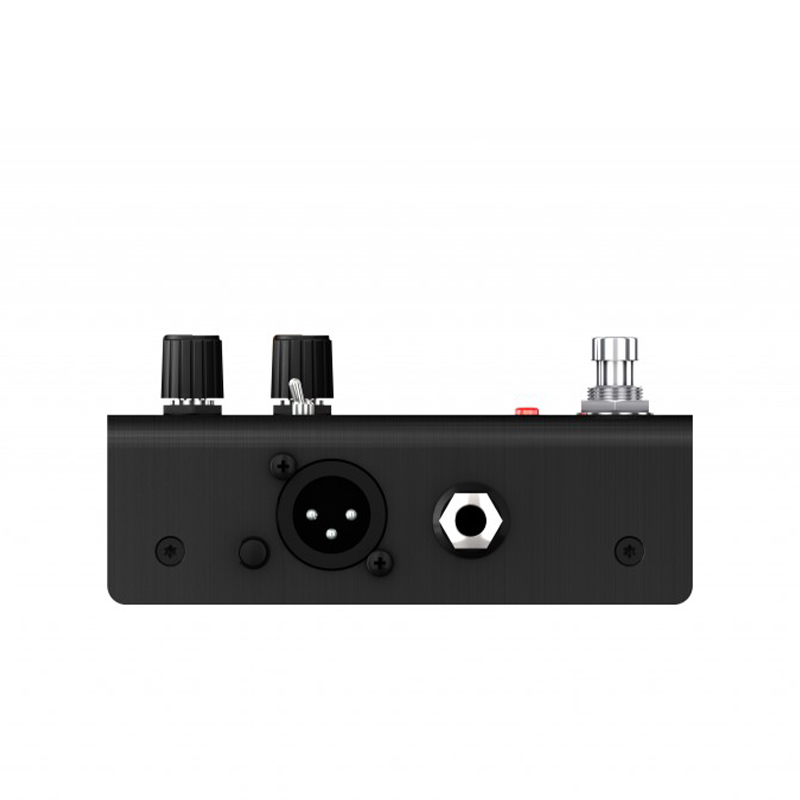

IK Multimedia Z-Tone Buffer Boost Guitar Preamp And Active DI Box
€169.00
In stock
Description
IK Multimedia Z-Tone Buffer Boost Guitar Preamp And Active DI Box
Guitar & bass pedalboards are all about exploring new tones & textures, creating a wide range of sound for your instrument. Z-TONE® Buffer Boost takes your live rig to a new level, letting you shape the sound of your instrument with the input circuits from our award-winning
Audio specs
- I/O Gain: Unitary, from 1/4” input JACK to both 1/4” and XLR outputs when GAIN is at 0dB and Z-TONE at the SHARP position.
- Gain Range: From -8dB to +8dB
- Boost range: From 0dB to +10dB
- Input impedance – Z-TONE set on PASSIVE mode: Variable from 1MΩ down to 2.2kΩ
- Input impedance – Z-TONE set on ACTIVE mode: Approx 20kΩ
- Output impedance, unbalanced out: 56Ω
- Output impedance, balanced out: 600Ω
- Max input level before clipping: +13dBm when powered by 48V phantom,+9dBm when powered by 9V battery
- Dynamic Range: better than 114dB(A) for both outputs, input gain at 0dB
- Total Harmonic Distortion, balanced output, 1kHz, +4dBm input: 0.0033% (PURE), 0.2% (JFET)
- Total Harmonic Distortion, unbalanced output, 1kHz, +4dBm input: 0.00055% (PURE), 0.2% (JFET)
- Frequency response: from 5Hz to 30kHz -1dB
- Phase deviation: 0° +/-10° from 20Hz to 20kHz
Power
- Phantom power: +48V phantom on Balanced output.
- Battery power: 9V
- External DC power: 9VDC, positive outside – not included
- Current consumption from P48 phantom power source: 6.5mA
Dimensions
- Size: 10.8cm/4.25″ x 12cm/4.72″ x 5.8cm/2.28″
- Weight: 600g/21.2oz
Package includes
- Z-TONE Buffer Boost unit
