Description

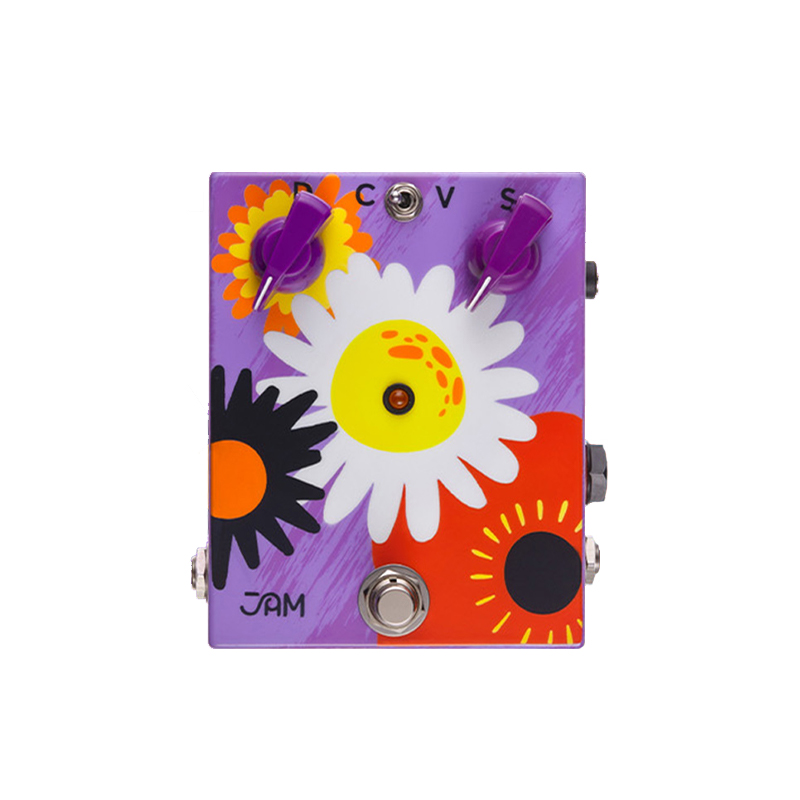

JAM Pedals RetroVibe mk.3

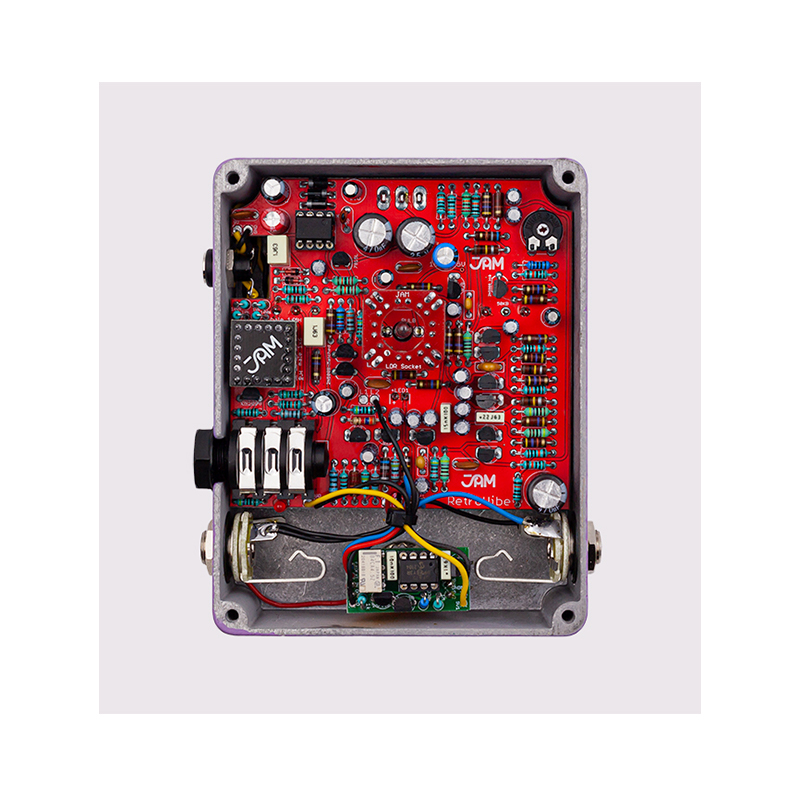

Comprised of photocells, a bulb, original NOS 2SC828 transistors and carbon comp resistors, the RetroVibe delivers the majestic sounds of the best Uni-Vibe pedals from back in the day, but housed in a modern pedalboard-friendly enclosure and featuring standard 9V DC operation internally lifted to 15V DC.
Choose between the Vibrato and Chorus settings and navigate from slow-rate wavy sounds all the way to fast Leslie-speaker effects!
Use it with any common passive 10k Expression pedal in conjunction with a standard TRS cable for real-time Speed control.
CONTROLS | ● DEPTH sets the effect amount in the dry signal ● SPEED sets the rate of the modulation ● Toggle-switch selects Chorus (C) and Vibrato (V) modes ● Internal trimmer sets the maximum intensity of the effect |
---|---|
EXPRESSION PEDAL INPUTS | ● Expression pedal input for remote Speed control |
SPECIFICATIONS | ● True Bypass ● Works with 9V DC adaptor (tip-negative) ● Power consumption: 150 mA (max) ● Dimensions (jacks, pots etc. included): 12 x 9.5 x 3.4 cm / 4.7 x 3.7 x 1.3 inches ● Weight: 350g / 0.77 lbs |
Additional information
Weight | 0.3 kg |
---|---|
