LD SYSTEMS DAVE 8 ROADIE Active PA System 3-Chanel

595.00

In stock

SKU: LDSSTA15 Categories: ,

Description

DAVE 8 ROADIE Active PA System 3-Chanel

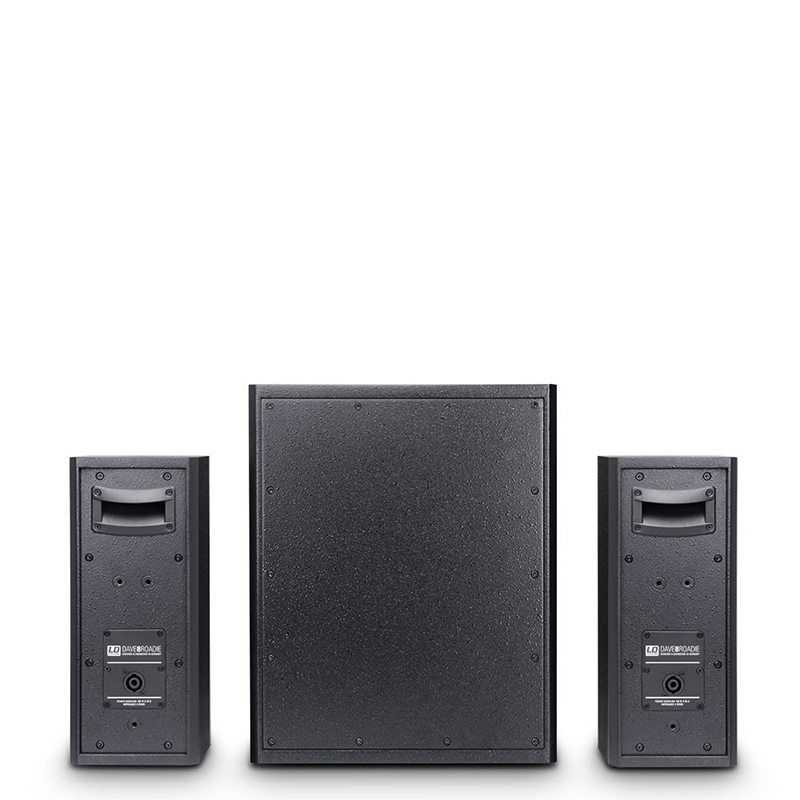

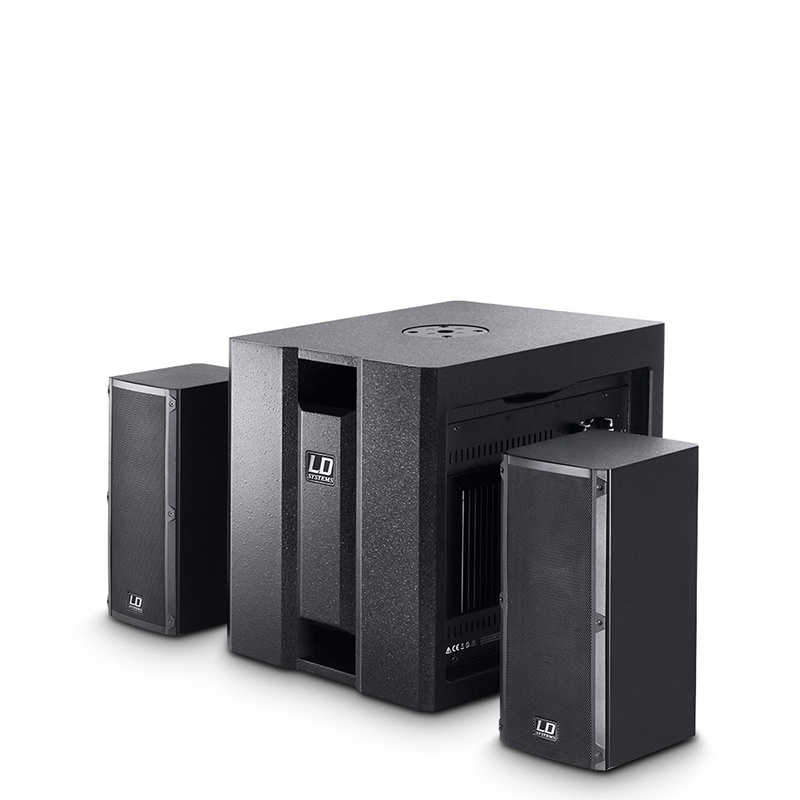

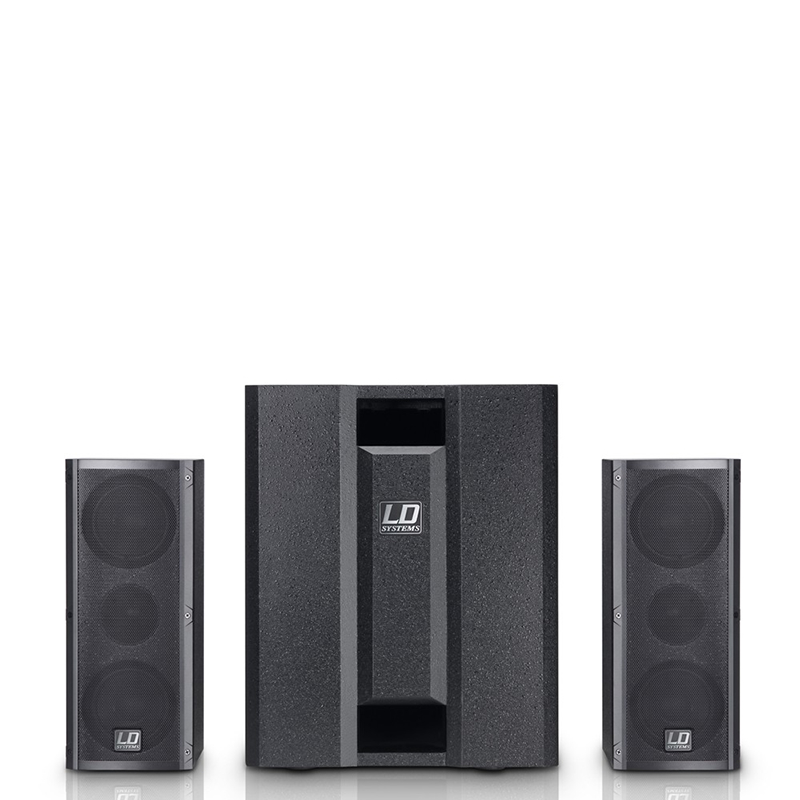

With the DAVE 8 Roadie, LD Systems are successfully implementing their motto “pro audio in motion”. This complete PA system with its powerful 1400-watt (Peak) power amp delivers astounding performance for mobile applications. The system is equipped with a high-performance 8″ band-pass subwoofer and two satellite speakers (2 x 4″ + 1″) and was designed as a flexible and portable mini PA system especially for musicians.

Specifications

Product number:LDDAVE8ROADIE
Product type:PA Complete Systems
Colour:Black
Max. SPL (continuous):117dB
Max. SPL (peak):123dB
Frequency response:45 – 19000Hz
Dispersion (H x V):60 x 60°
Weight:29,1kg
Subwoofer
Low/mid driver dimensions:8″
Woofer size:203mm
Woofer magnet:Ferrite
Woofer brand:Custom-made
Woofer voice coil:1.5″
Woofer voice coil (mm):38.1mm
Cabinet construction:Bandpass
Cabinet material:MDF
Cabinet surface:painted
Subwoofer width:352mm
Subwoofer height:430mm
Subwoofer depth:434mm
Subwoofer features:threaded flange M20, transport handle, limiter
Mid/Hi System
Midrange size:2 x 4″
Midrange size:2 x 101.6mm
Midrange magnet:Ferrite
Midrange brand:Custom-made
Midrange voice coil:1″
Midrange voice coil:25.4mm
Horn:radial
Tweeter dimensions:1″
Tweeter dimensions (mm):25.4mm
Tweeter magnet:Ferrite
Tweeter brand:Custom-made
Tweeter voice coil:1″
Tweeter voice coil (mm):25.4mm
Mid/Hi system impedance:4Ohm(s)
Loudspeaker inputs:1
Speaker input connections:Speakon compatible
Cabinet construction mid/high:Closed
Mid/Hi system cabinet material:MDF
Mid/Hi system cabinet surface:painted
Mid/Hi system width:150mm
Mid/Hi system height:350mm
Mid/Hi system depth:170mm
Mid/Hi system weight:4.2kg
Mid/Hi system features:metall front grille, transport handle, 16 mm flange
Amplifier module (integrated in subwoofer)
Amplifier:Class A/B
Amplifier output system (RMS):350W
Amplifier output system (peak):1400W
Protection circuits:limiter, over-current, short circuit
Cooling:heat sink
Controls:Mic level, input switch (MP3 / Hi-Z), MP3 / Hi-Z level, Main level, Subwoofer Phase Reverse, Line level, Sub level, On / Off
Indicators:Power, Protect (protection circuit engaged)
Operating voltage:220 V AC – 240 V AC
Line inputs:3
Line input connectors:XLR, RCA, 6.3 mm jack
Mic inputs:1, XLR, 6.3 mm jack
MP3 inputs:1
MP3 input connectors:3.5 mm jack
Hi-Z inputs:1
Hi-Z input connectors:6.3 mm jack
Loudspeaker outputs:2
Speaker output connections:Speakon compatible

Additional information

Weight 22.5 kg
