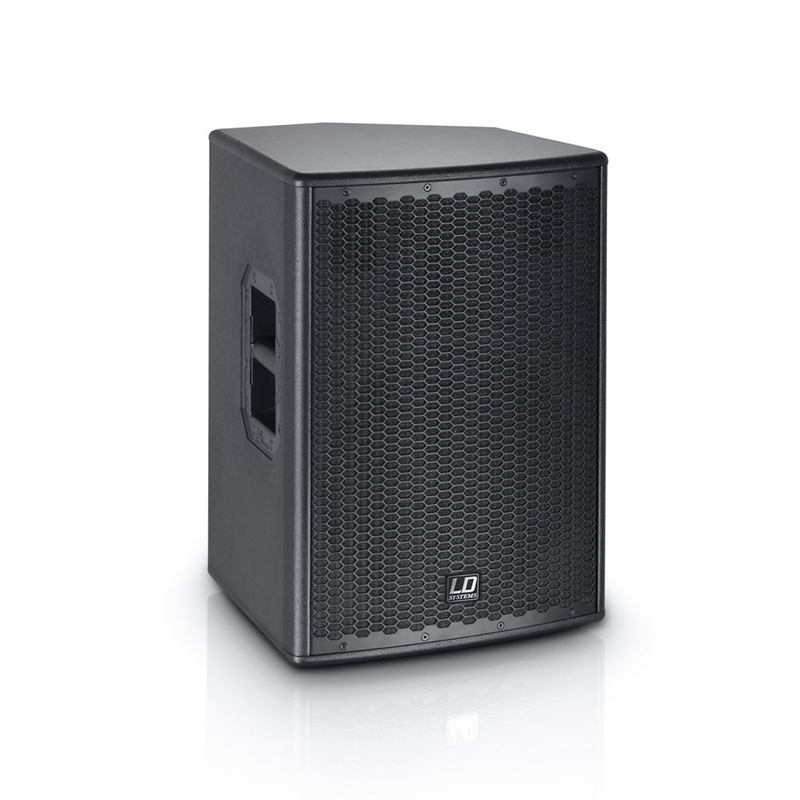

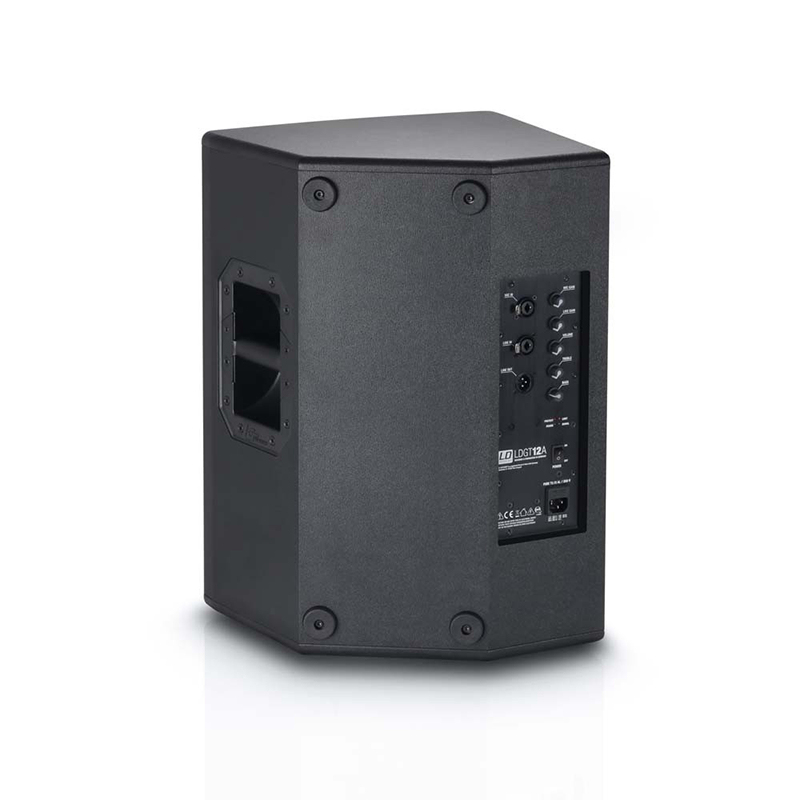

LD SYSTEMS GT12A Power Speaker 1000W 12″
€399.00
In stock
Description
LD SYSTEMS GT12A Power Speaker 1000W 12″
With its 12″ custom woofer and 1″ Celestion compression driver complement the GT 12 A active fullrange loudspeaker delivers high definition audio with a peak SPL of 122 dB, 60 Hz – 19 kHz frequency response and 90° x 60° dispersion.
Covered in tough, textured Dura-Vinyl for protection and long-lasting appearance the rugged 15mm MDF bass reflex enclosure integrates a 54° monitor angle, honeycomb pattern steel grille and dual tilt pole mount.
Providing outstanding value, the GT 12 A is powered by a built-in Class D digital amplifier with highly efficient SMPS technology and 1,000 watts peak output. It features XLR and 6.3 mm connectors for line and microphone input, a 2-band EQ and overcurrent and overvoltage protection for reliable operation.
A protective cover is available as accessory.
Specifications
| Product number: | LDGT12A |
|---|---|
| Product type: | PA loudspeaker |
| Type: | Actives |
| Low/mid driver dimensions: | 12″ |
| Woofer size: | 304.8mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| Woofer voice coil: | 2.5″ |
| Woofer voice coil (mm): | 63.5mm |
| Horn: | CD horn |
| HF driver dimensions: | 1″ |
| HF Driver Size: | 25.4mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | Celestion |
| HF driver voice coil: | 1″ |
| HF Driver Voice Coil: | 25.4mm |
| Amplifier: | Class D |
| Dispersion (H x V): | 90 x 60° |
| RMS: | 250W |
| Peak power: | 1000W |
| Frequency response: | 60 – 19000Hz |
| Crossover frequency: | 2200Hz |
| Max. SPL (continuous): | 119dB |
| Max. SPL (peak): | 122dB |
| Protection circuits: | HF Driver, over voltage, over-current |
| Input sensitivity: | Mic: 150 mV / Line: -10dBu |
| Controls: | Power, Line Gain, Treble, volume, Mic Gain, Bass |
| Indicators: | Limit, Protect (protection circuit engaged), Signal, Power |
| Line inputs: | 1 |
| Line input connectors: | XLR, 6.3 mm jack |
| Mic inputs: | 1, 6.3 mm jack, XLR |
| Line outputs: | 1 |
| Line output connectors: | XLR |
| Operating voltage: | Switching power supply, 220 V AC – 240 V AC (Auto), 50 – 60 Hz, 110 V AC – 120 V AC |
| Cabinet material: | 15 mm MDF |
| Cabinet surface: | Dura-vinyl textured paint |
| Cabinet construction: | vented |
| Monitor angle: | 54° |
| Width: | 389mm |
| Height: | 565mm |
| Depth: | 368mm |
| Features: | dual-tilt flange (0°/5°), rugged steel grille |
| Weight: | 20,7kg |
Additional information
| Weight | 19.4 kg |
|---|---|
| Brand |
