ROLAND MC-808 Sampling Groovebox

749.00

Out of stock

SKU: ROL0000002 Category: Brand:

Description

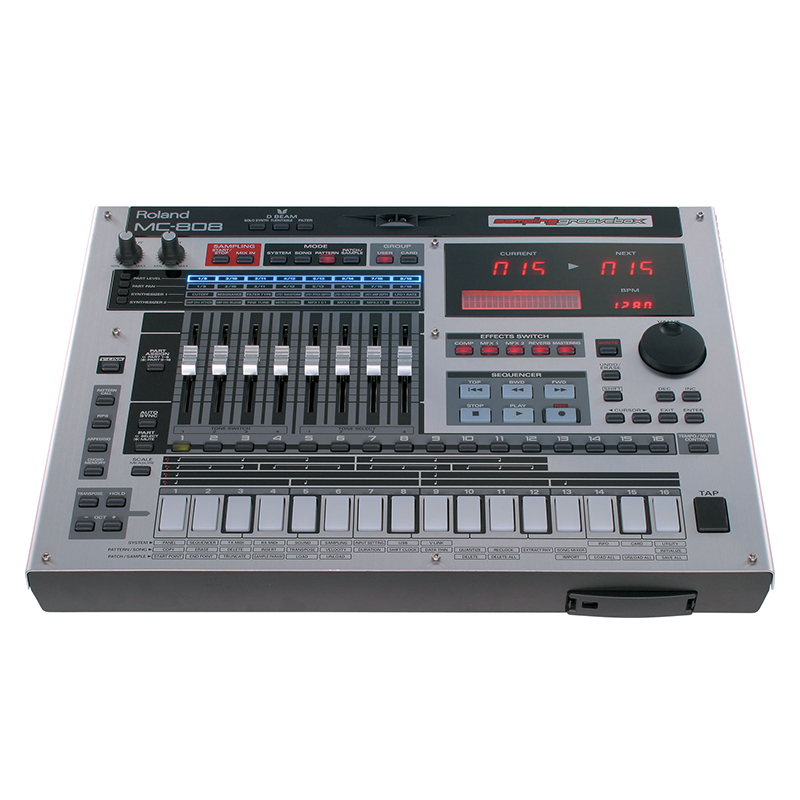

ROLAND MC-808 Sampling Groovebox

From the company that made “groovebox” a household name comes a remarkable addition to the famous Roland groovebox family: the MC-808.

Specifications

Maximum Polyphony
  • 128 voices (shared with the sampling section)
Sampling Frequency
  • 44.1 kHz
Parts
  • 16 (Main) + 16 (RPS)
Waves
  • 622
Patches
  • User: 1,024 (pre-load: 896), Card: 1,024
Rhythm Set
  • User: 256 (pre-load: 128), Card: 256

Sampling Section

Data Format
  • 16-bit linear (File Type WAV/AIFF)
Maximum Polyphony
  • shared with the sound generator section
Sampling Frequency
  • 44.1 kHz (fixed)
Maximum Sampling Time
  • When sampling memory isn’t expanded (4MB) mono: 47 sec. approx., stereo: 23.5 sec. approx.
    When sampling memory is expanded with DIMM (516 MB) mono: 102 min. approx., stereo: 51 min. approx.
Samples
  • User: 2,000, Card: 7,000

Sequencer Section

Parts
  • 16 + Tempo/Mute Control
Resolution
  • 480 ticks per quarter note
Tempo
  • 5 – 300
Maximum Note Storage
  • approx. 1,300,000 notes
Patterns
  • User: 800, Card: 800
Recording Mode
  • Realtime, TR-REC, Step
Songs
  • 50
Arpeggio Style
  • 128
Chord Memory
  • 128
RPS Set
  • 50
Pattern Set
  • 50

Effects Section

Reverb
  • 1 (4 types)
Compressor
  • 1 (1 type)
Multi-effects (MFX)
  • 2 (MFX1, 2: 47 types)
Pitch Shifter (for external input)
  • 1 (1 type)

Mastering Section

3-bands Compressor
  • 1 (1 type)

Expansion Slot

Sampling Memory Expansion
  • DIMM 1 slot, Number of pins: 168-pin, Speed: 100 MHz (PC100 CL=2), 133 MHz (PC133 CL=3), Voltage: 3.3 V, Capacity: 128 MB, 256 MB, 512 MB, Board height: 38 mm or less
External Memory
  • For saving Pattern/Patch/Sample, CompactFlash card: 1 slot, Compatible up to 1 GB (3.3 V)

Controllers/Display

Display
  • 20×2 character Type LCD (with Back lit.), Pattern Number Display: 7 segment 3 character x 2 (LED), BPM Diplay: 7 segment 4 character (LED)
Control Knob
  • OUTPUT Volume: 1, INPUT Volume: 1
Control Slider
  • Motorized Fader (60mm) x 8 (touch sensitive)
Other Controller
  • D Beam Controller
Connectors
  • MIX OUTPUT Jack (L (MONO), R), DIRECT 1 OUTPUT Jack (L (MONO), R), INPUT Jack (L (MONO), R), Headphones Jack, MIDI Connectors (IN/OUT), USB Connector (USB MIDI, Mass Storage Class), DC IN
Power Supply
  • DC 12 V (AC adaptor)
Current Draw
  • 1500 mA
Accessories
  • Owner’s Manual, Sound

Size And Weight

Width

431 mm
17 inches

Depth

327 mm
12-7/8 inches

Height

104 mm
4-1/8 inches

Weight

3.4 kg
7 lbs. 8 oz.

Additional information

Weight 2.4 kg
