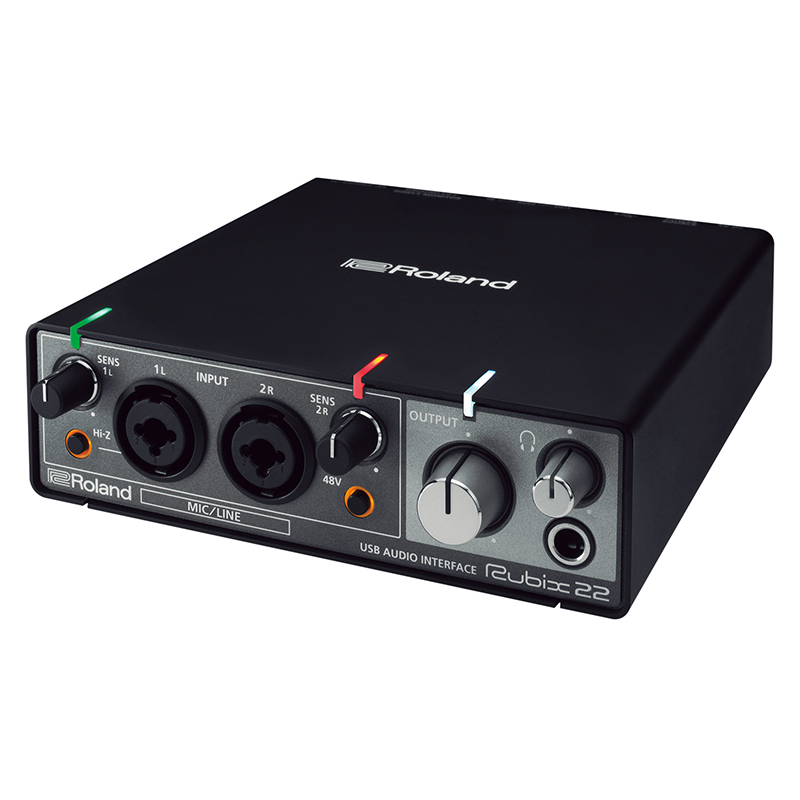

ROLAND RUBIX 22 2-IN/2-OUT, High-Resolution Interface

Description

ROLAND RUBIX 22 2-IN/2-OUT, High-Resolution Interface

Rubix22 offers a perfect balance of high-fidelity sound, solid build quality, compact size, affordable price, and crucial features for today’s musicians and producers. With support for high-resolution audio up to 24-bit/192kHz, Rubix22 sounds clear and defined and is carefully engineered to have extremely low noise from input to output. Its near universal USB support means it works seamlessly with Mac and PC computers, and even supports iPads, for the ultimate in portable music production and performance.

Specifications

SYSTEM

Number of Audio Record/Playback Channels
Record: 2 channels
Playback: 2 channels

Signal Processing
PC interface: 24 bits
AD/DA conversion: 24 bits

Sampling Frequency
AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Interface
Hi-Speed USB
MIDI IN, OUT

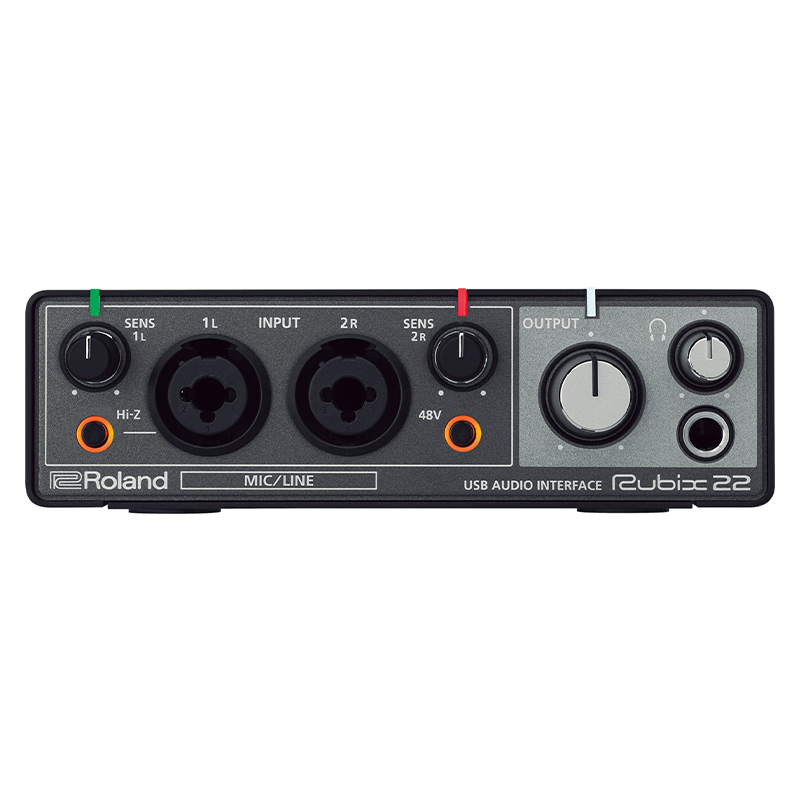

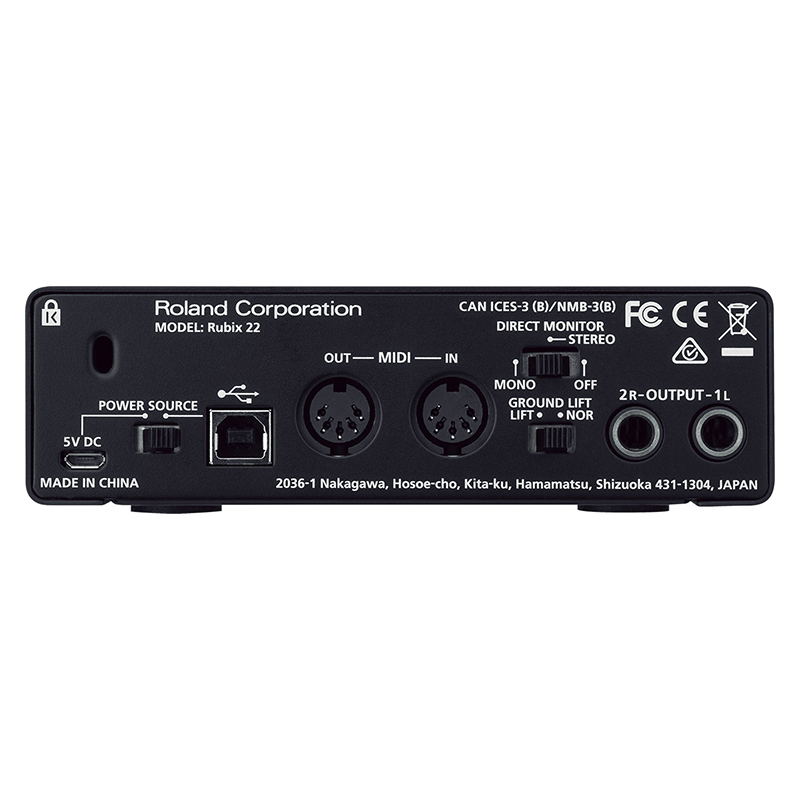

Connectors
INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC 5V port: USB Type micro B
*1 Current value per channel.
*2 INPUT 1L supports high impedance

Controllers
SENS 1L, 2R knobs
Hi-Z switch
48V switch
OUTPUT knob
PHONES knob
POWER SOURCE switch
DIRECT MONITOR switch
GROUND LIFT switch

Indicator
Level indicators (1L, 2R)
POWER indicator
Hi-Z indicator
48V indicator

CHARACTERISTICS

Nominal Input Level
INPUT (1L, 2R) connectors (XLR type): -60– -12 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44–+4 dBu

Maximum Input Level
INPUT (1L, 2R) connectors (XLR type): +2 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu

Nominal Output Level
OUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced)

Maximum Output Level
OUTPUT (1L, 2R) jacks: +8 dBu (impedance balanced)

PHONES Maximum Output Power
20 mW + 20 mW (L + R, 47 ohms load)

Headroom
14 dB

Input Impedance
INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater
*3 When the Hi-Z is turned on

Output Impedance
OUTPUT (1L, 2R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohms

Residual Noise Level
INPUT (1L, 2R) –> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)

Dynamic Range
AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R) jacks: 109 dB typ.

OTHER

Power Supply
Supplied from the computer via USB, DC 5V

Current Draw
500 mA

Operating System
Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10
Apple Mac OS X 10.10 or later
Apple iOS 9 or later

* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the Rubix, Roland cannot guarantee that a given computer can be used satisfactorily with the Rubix based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.

Dimensions
145 (W) x 165 (D) x 46 (H) mm
5-3/4 (W) x 6-1/2 (D) x 1-13/16 (H) inches

Weight (main unit only)
1.0 kg
2 lbs 4 oz

Accessories
Setup Guide
Leaflet “USING THE UNIT SAFELY”
USB cable
All Rubix costumers now get a 6 months of Roland Cloud Pro membership for free (Upon registration)
