Description

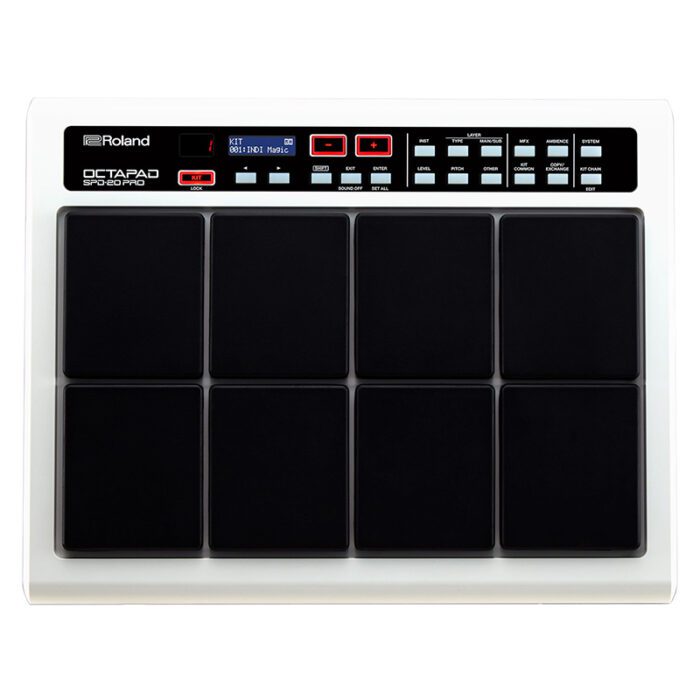

Roland SPD-20 Pro Octapad Percussion Pad
- The original SPD-20 sound set, augmented with all-new percussion sounds for a wider sonic palette
- Includes a broad selection of world percussion, with more than 900 instruments to choose from
- 200 customizable percussion kits, including 100 ready-to-play presets
- Eight cushioned rubber pads provide even and accurate triggering, improved dynamic response, and excellent isolation between pads
- Four external dual-trigger inputs and a dedicated hi-hat control input allow connection of additional pads and pedals, including a kick pad and hi-hat controller pedal to create a mini drum kit
- Dedicated buttons for adjusting sound-editing parameters while performing
- LCD + LED screens with backlights for easy visibility on dark stages
- USB memory port for backing up settings and kit data
- Designed in Japan
SPECIFICATIONS | |
---|---|
Pads | Built-in Pads: 8 * Four external trigger inputs are provided, allowing you to connect Pads. |
Instruments | Instruments: 900 instruments or greater |
Kits | 200 (Preset: 100) |
Kit Chain | 16 chains (16 steps per chain) |
Layer | 2 layers per pad 2 layers x 2(Head/Rim) per external Trigger |
Instrument /Pad Parameters | Volume Curve Coarse Tune Fine Tune Pedal Bend Decay Output Layer EQ Pad comp Pad Mute Group Pad Link |
Kit Effects | Ambience (5 Types) Kit EQ Kit Comp MFX : 3 systems, 38 types |
Display | 16 characters 2 line (backlit LCD) 7 segments, 3 characters (LED) |

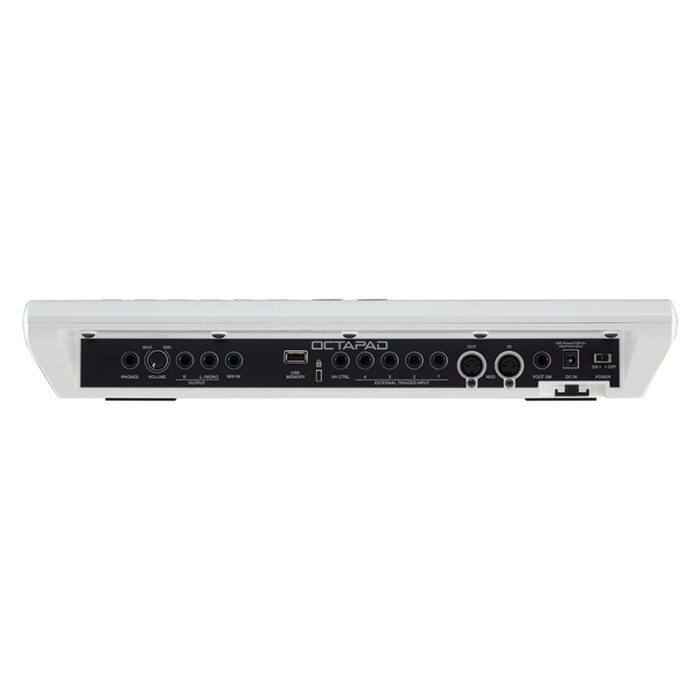

Connectors | PHONES Jack: Stereo 1/4-inch phone type OUTPUT(L/MONO, R) Jacks: 1/4-inch phone type MIX IN Jack: Stereo 1/4-inch phone type EXTERNAL TRIGGER INPUT Jack : 1/4-inch TRS phone type x 4 HH CTRL Jack: 1/4-inch phone type FOOT SW Jack: 1/4-inch TRS phone type MIDI (IN, OUT) Connectors USB MEMORY port: USB A type |
Power Supply | AC adaptor (DC 12 V) |
Current Draw | 500 mA |
SIZE AND WEIGHT | |
Dimensions | 450(W) x 350 (D) x 72 (H) mm 17-3/4 (W) x 13-13/16 (D) x 2-7/8 (H) inches |
Weight | 3.7 kg / 8 lbs 3 oz (excluding AC Adaptor) |
OTHER | |
Accessories | Owner’s Manual AC Adaptor |
Options (sold separately) | Pads (PD series, PDX series, BT series) Cymbals (CY series) Kick Triggers (KD series, KT Series) Hi-Hats (VH-11/10) Hi-Hat Control Pedal (FD series) Pad Stand (PDS series) All-Purpose Clamp (APC series) Acoustic Drum Trigger (RT series) Footswitch (FS series, excluding Latch-type) Personal Drum Monitor (PM series) |
Additional information
Weight | 3.7 kg |
---|---|
Brand |
