ROLAND SPD-SX Sampling Pad

Description

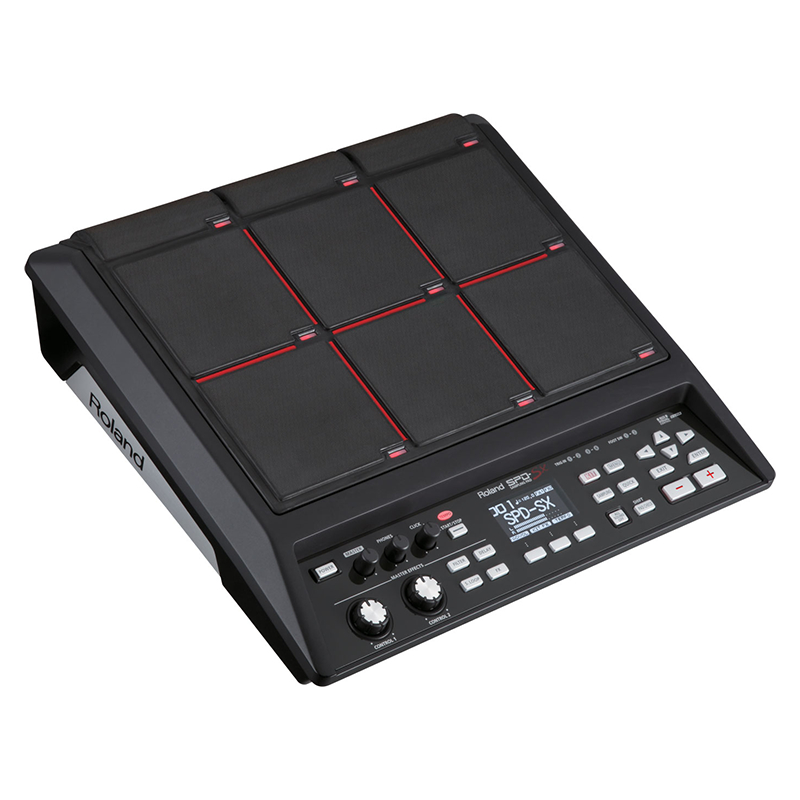

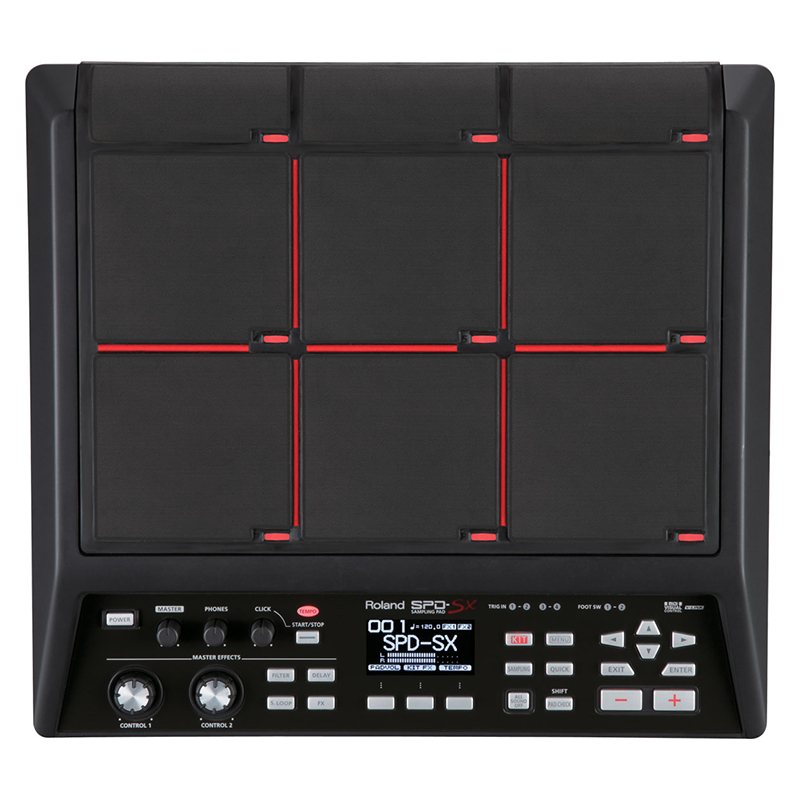

SPD-SX Sampling Pad

The new SPD-SX Sampling Pad puts powerful sample creation and playback under your sticks with innovative audio-capturing features, expressive playability, three multi-effects engines, and much more. The perfect addition to any acoustic or electronic drum kit, percussion setup, DJ booth, or keyboard rig, the SPD-SX is equally at home on the live stage, in the recording studio, pre-production suite, or dance club. The SPD-SX takes many of the proven concepts from its predecessor and raises them to a new level. Whether you’re firing off one-shot samples, looped phrases, or complete audio playback tracks, the SPD-SX is loaded with the latest technology and tools to get the job done with speed, precision, and convenience. Enjoy the most advanced triggering and sampling technology in a sleek, easy-to-use percussion instrument.

• Unique sampling-pad concept — the only instrument of its kind in the world
• 4 GB internal memory, enabling approximately 720 minutes of sampling (mono) without requiring external memory
• Nine velocity-sensitive rubber pads, two external dual-trigger inputs
• Easy capturing and assignment of audio data through Multi-Pad Sampling
• Three units of multi-effects onboard, with two real-time control knobs and four dedicated effect buttons
• Individual Pad Dynamics indicators show pad status and audio-level activity during performance
• Expanded USB functionality (USB Mass Storage, USB MIDI/AUDIO, USB Memory)
• Wave Manager software included for easily importing, assigning, and organizing samples
• Large backlit LCD

Specifications

Pads
Built-in Pads: 9 (with LED Indicators)
* Two external trigger inputs are provided, allowing you to connect up to four Pads.

Maximum Polyphony
20 voices
* Maximum polyphony becomes 16 voices according as an operating state.

Number of Recordable Wave Data
10,000
* Including preload wave data.

Sampling Time (Total time for all wave data)
Approx. 360 min. in stereo (720 min. in mono)
* Since the internal memory included with the SPD-SX contains preload data, the available sampling time will be less than the time above.

Data Format
16-bit linear PCM (WAV/AIFF)

Sampling Frequency
44.1 kHz

Kits
100

Kit Chain
8 chains (20 steps per chain)

Effects
Master Effects (21 Types)
Equalizer
Kit Effect 1 (20 Types)
Kit Effect 2 (20 Types)

Display
Graphic LCD 128 x 64 dots

Connectors
PHONES jack (Stereo 1/4-inch phone type)
MASTER OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
AUDIO IN jacks (L/MONO, R) (1/4-inch phone type) (with LINE-MIC GAIN control)
TRIG IN jacks (1/2, 3/4) (1/4-inch TRS phone type)
FOOT SW jack (1/2) (1/4-inch TRS phone type)
MIDI connectors (IN, OUT)
DC IN jack
COMPUTER connector
USB MEMORY connector

Interface
Hi-Speed USB (USB-MIDI, USB-AUDIO, USB Mass Storage Class, USB Flash Drive)

Power Supply
DC 9 V (AC Adaptor)

Current Draw
600 mA

Accessories
CD-ROM (SPD-SX Wave Manager, USB driver, preload wave data)
Owner’s Manual
AC Adaptor

Options (sold separately)
Pads (PD series, PDX series)
Cymbals (CY series)
Kick Triggers (KD series)
Pad Stand (PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30H, RT-30HR, RT-30K)
Pedal Switch (DP-2)
Footswitch (BOSS FS-5U, BOSS FS-6)
Personal Drum Monitor (PM-10, PM-30)
USB Flash Memory

* Use USB Flash Memory sold by Roland. We cannot guarantee operation if other products are used.

SIZE AND WEIGHT

Width
364 mm
14-3/8 inches

Depth
331 mm
13-1/16 inches

Height
94 mm
3-3/4 inches

Weight
2.5 kg
5 lbs. 9 oz.
