ROLAND WL-20L Low Impedance Wireless System

Description

ROLAND WL-20L Low Impedance Wireless System

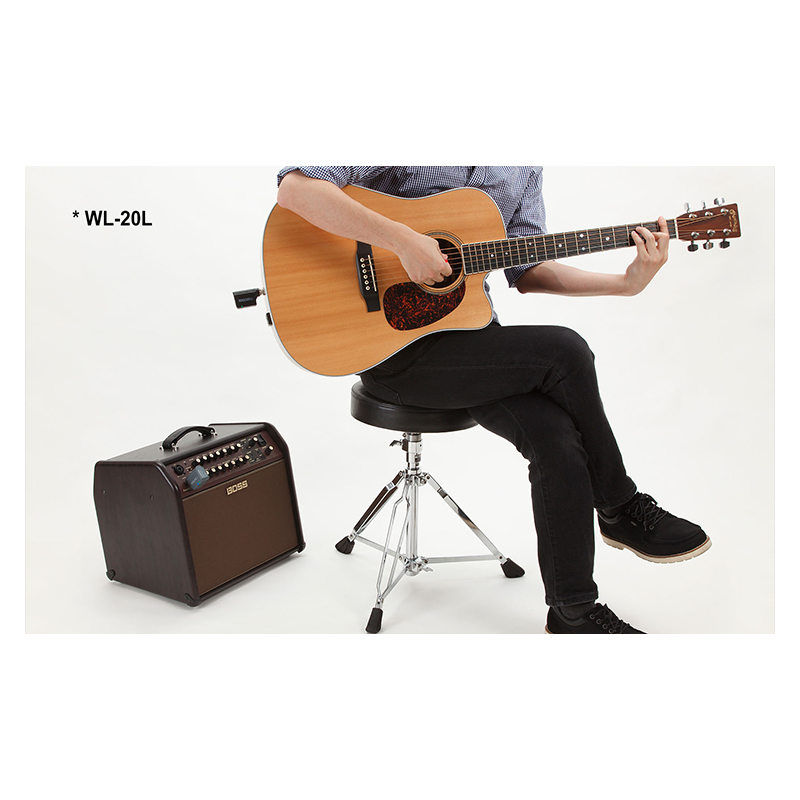

The WL-20L model is functionally identical to the WL-20, with the exception that it eliminates cable tone simulation. This makes it the best choice for instruments where cable capacitance has little or no effect on the tone, such as an acoustic/electric guitar with an onboard preamp, a guitar or bass with active pickups, or a line-level device like a keytar or Roland’s Aerophone digital wind instrument. The WL-20L also works great with passive pickups if you don’t need the subtle treble roll-off provided by cable tone simulation.

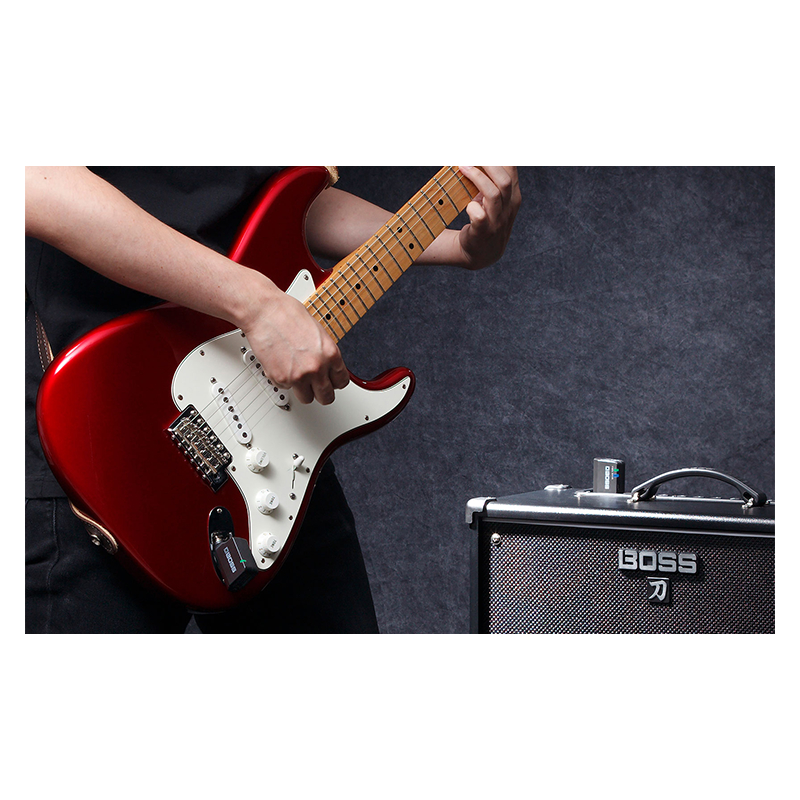

• Plug-and-play wireless systems for guitar, bass, and other electronic instruments

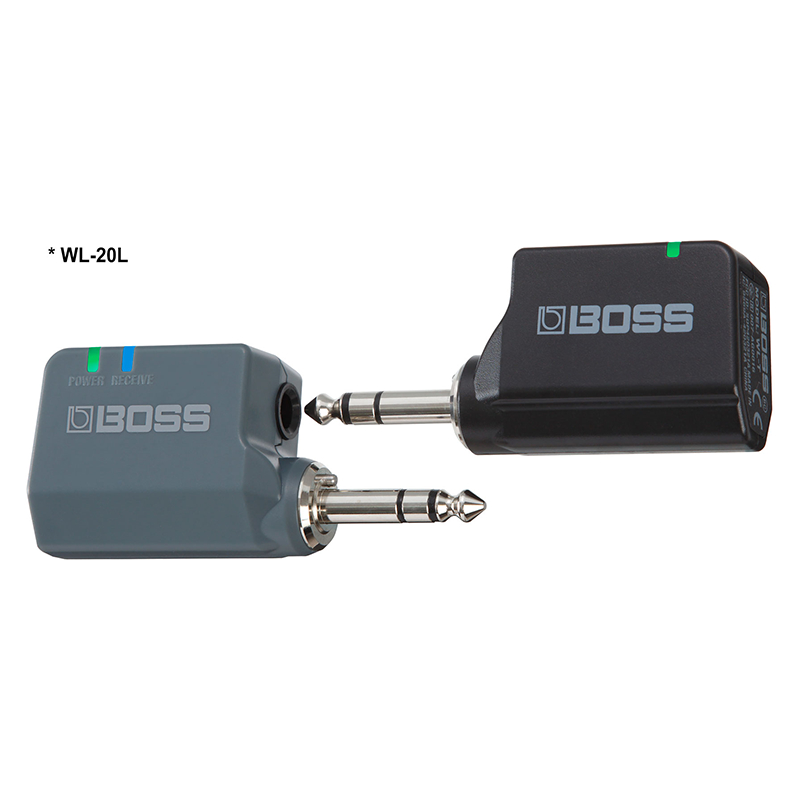

• No complicated setup required—simply dock the transmitter and receiver together for about 10 seconds to set the optimum wireless connection
• Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3 ms), and 50-foot/15-meter range (line-of-sight propagation)*
• Built-in rechargeable batteries provide up to 12 hours of continuous playing time**
• Simple charging with a standard USB adaptor (5 V/500 mA or greater)
• Cable tone simulation reproduces the natural capacitive effect of a 10-foot/3-meter guitar cable (WL-20 model only)
• Spare WL-T Transmitter available separately* The transmission range may vary due to local conditions.
  ** A full charge provides 12 hours of time for the transmitter and 10 hours for the receiver.

SPECIFICATIONS (RECEIVER)

Wireless Format

BOSS proprietary digital audio format

Wireless carrier frequency

2.4 GHz

Compatible Channels

14
(May vary due to local conditions)

Transmission Range

50 feet line-of-sight
(May vary due to local conditions)

Latency

2.3 ms

Dynamic Range

110 dB or greater

Frequency Response

20 Hz–20 kHz

Nominal Output Level

-10 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Indicators

POWER
RECEIVE

Connectors

Output plug: 1/4-inch TRS phone type
TRANSMITTER jack: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type

Power Supply

Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port

Current Draw

During wireless operation: 60 mA
While charging: 500mA

Battery charging time

Charging only the receiver: Approximately 3 hours
Charging simultaneously with the transmitter: Approximately 4 hours

Expected battery life under continuous use

Approximately 10 hours
* These figures will vary depending on the actual conditions of use.

Accessories

Owner’s Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Micro USB cable for charging (*1)
*1: Use a standard USB AC adaptor (5 V/over 0.5 A) for charging.

SIZE AND WEIGHT(RECEIVER)

Width

87 mm
3-7/16 inches

Depth

25 mm
1 inches

Height

38 mm
1-1/2 inches

Weight

60 g
3 oz

SPECIFICATIONS (TRANSMITTER (WL-T))

Nominal Input Level

-10 dBu (1 M ohm)

Connectors

Input plug: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type

Power Supply

Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port

Current Draw

350mA

Battery charging time

Approximately 3 hours

Expected battery life under continuous use

Approximately 12 hours
* These figures will vary depending on the actual conditions of use.

SIZE AND WEIGHT (TRANSMITTER (WL-T))

Width

87 mm
3-7/16 inches

Depth

22 mm
7/8 inches

Height

36 mm
1-7/16 inches

Weight

43 g
2 oz
