Soundsation Hyper Top 10A Active Speaker 500watt
€329.00
In stock
500W 10″ Polypropylene bi-amped active speaker
Description

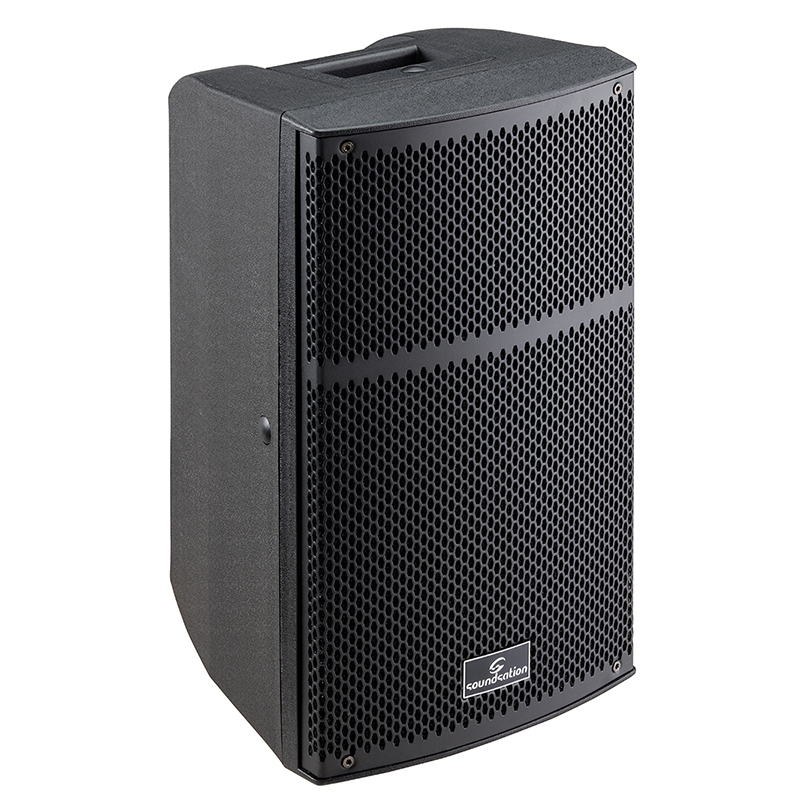

Soundsation Hyper Top 10A Active Speaker 500watt
HYPER series is the result of years of experience gathered by Soundsation in Portable Sound systems.This speaker line is built with a sturdy, lightweight and stylish polypropylene enclosure with full metal grille and acoustic foam to protect the transducers. The cutting-edge design, according to latest industry standard, offers both a great look and an optimal sound quality. All models are equipped with a Class D amp and switching power supply to deliver massive power with great efficiency and light weigh. (with the exception of the 6”). MIC and Line inputs to connect all major input sources, being microphones, mixers or media players. Featuring four M8 flying points distibuted on each side, 1 handle on top and a standard D36mm pole mount hole it is ideal for both fixed installation or portable applications.
KEY FEATURES
| 2-Way bi-amped Active Speaker | |
| High resonance, sturdy and lightweight polypropylene cabinet with full metal grille and foam soundproof material | |
| 2 Class D amplifiers 500W (440W+60W) | |
| 10″ woofer and 1″ driver | |

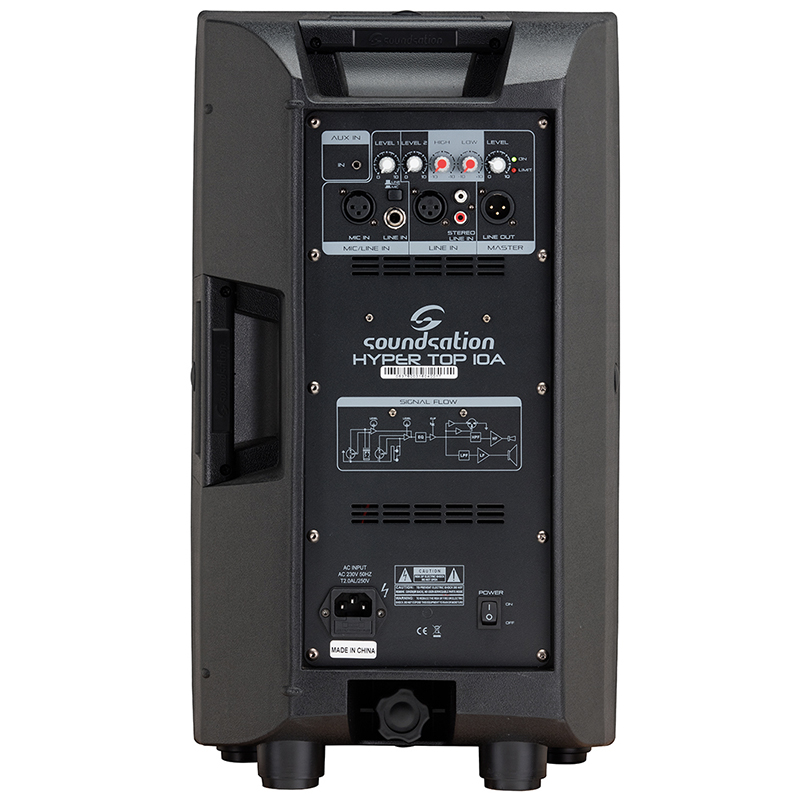

| Microphone/line inputs XLR + jack jack ¼”, line XLR/RCA stereo, mini jack for convenient connection of smartphones and tablets | |
| XLR output link out | |
| Volume for each channel, master volume and equalization Hi/LOW controls | |

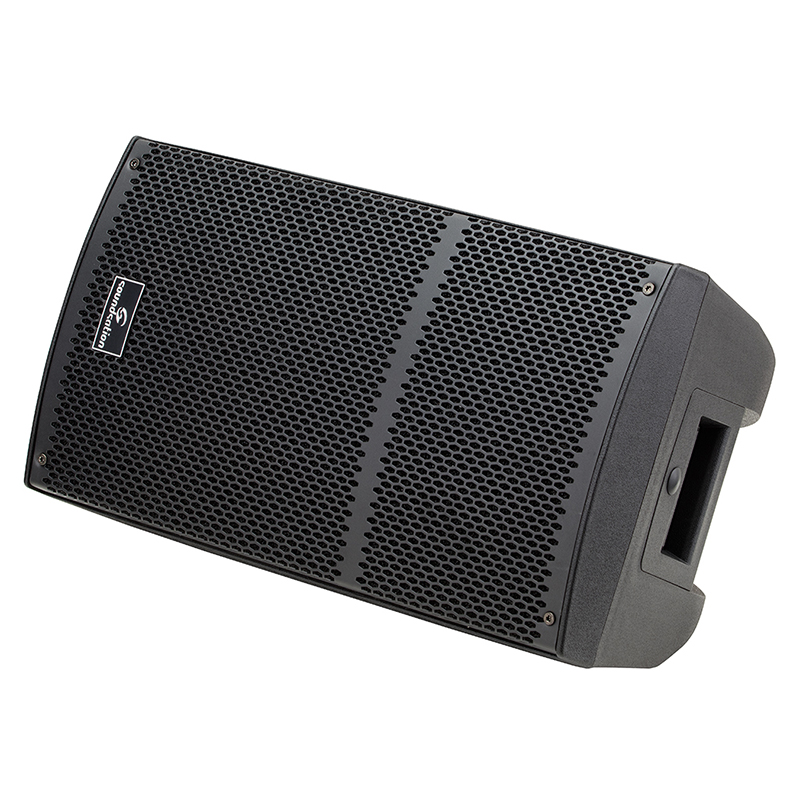

| Suited for stage monitor use at 30°/45° | |
| Top and side handles allow easy carrying | |
| 36mm pole mount | |
| 4 M8 flying points, one each side | |
| Dimensions (WxHxD) | 300 x 528 x 306 mm |
| Weight | 9 Kg |
SPECIFICATIONS
| 2-Way active bi-amped speaker | |
| Woofer | 10″ with 2″ voice coil |
| Compression driver | 1” voice coil, 1” throat |
| Horn | 90° x 60°, symmetric |
| Frequency Response [- 10dB] | 53Hz – 19KHz |
| Frequency Response [- 3dB] | 58Hz – 19KHz |
| Max SPL | 116dB |
| Sensitivity | 93dB |
| 2 x Class D amplifier | |
| Power (Peak/Rated) | 500W (440+60W) / 250W (220+30W) |
| Crossover | 3.2KHz, 24dB/Oct. |
| EQ | High (2.5KHz, +/- 12 dB); Low (150Hz, +/- 12 dB) |
| LEDs | Power On (Green), Clip (Red) |
| Power Requirement | 230Vac – 50 Hz |
| Minimum Power Consumption | 125W |
| Power Connector | VDE with T2A-250V Fuse |
| Dimensions (WxHxD) | 300 x 528 x 306 mm |
| Weight | 9 Kg |
Additional information
| Weight | 9 kg |
|---|---|
| Brand |
