Description

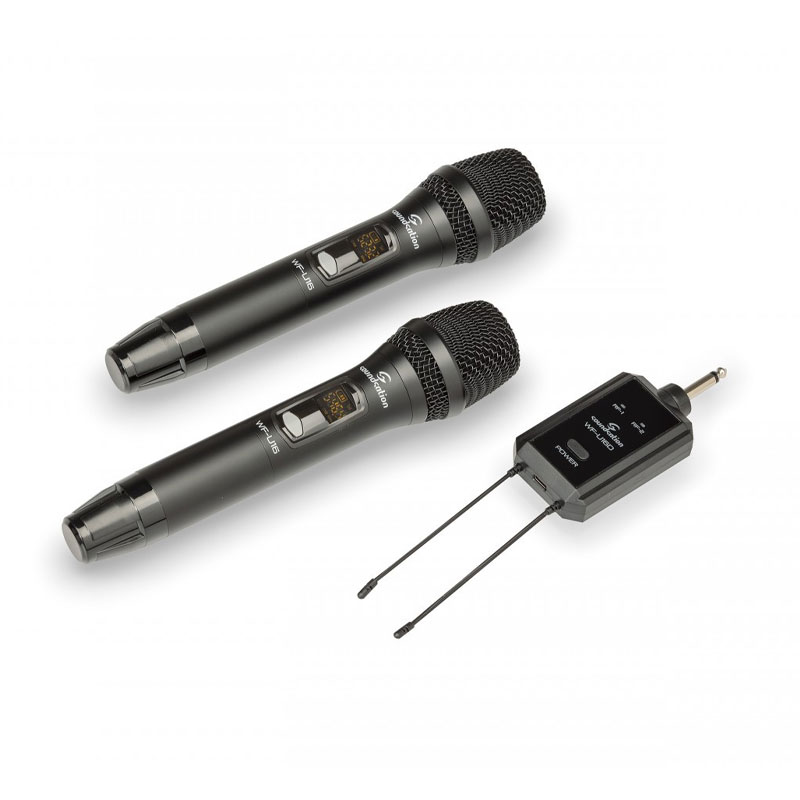

SOUNDSATION [POCKETMIC U16HH-A2] 2×16-Channel Dual UHF Compact Wireless System – 606-613.5MHz
There are so many applications where a wireless microphone, while keeping professional audio quality, is required to be as portable and easy to use as possible. It happens very often that even the most experienced and demanding users struggle when they have to solve interference problems during their performances. Nowadays, moreover, the increasing number of smartphones and other devices, Wi-Fi, digital TV, etc., make the frequency spectrum more and more critical. Soundsation is well aware of this state of affairs and knows very well the needs of its users, which is why it decided to use digital technology also in the automatic selection of frequencies (16 channels in the case of the PockeMic U16)
Carrier Frequency | 606-613.5MHz |
Modulation Type | DQPSK |
Dynamic Range | >90dB |
Signal/Noise Ratio | >80dB |
Total Harmonic Distortion | <0.3% |
Electric Current | 250mA ±10mA |
Voltage | 3.7V Lithium battery |
Frequency Response | 40Hz-20kHz ±3dB |
Audio output Level | 400mV ±20mV |
Ideal distance | 50m |
Pick up type | Professional Dynamic Capsule |
Pattern | Cardioid |
Transmitter Harmonic Suppression | 54dBc |
Transmitter Harmonic Distortion | <0.3% |
Transmitter Electric Current | 130mA ± 10mA |
Transmitter Voltage | 2 x 1.5V AA Battery |
