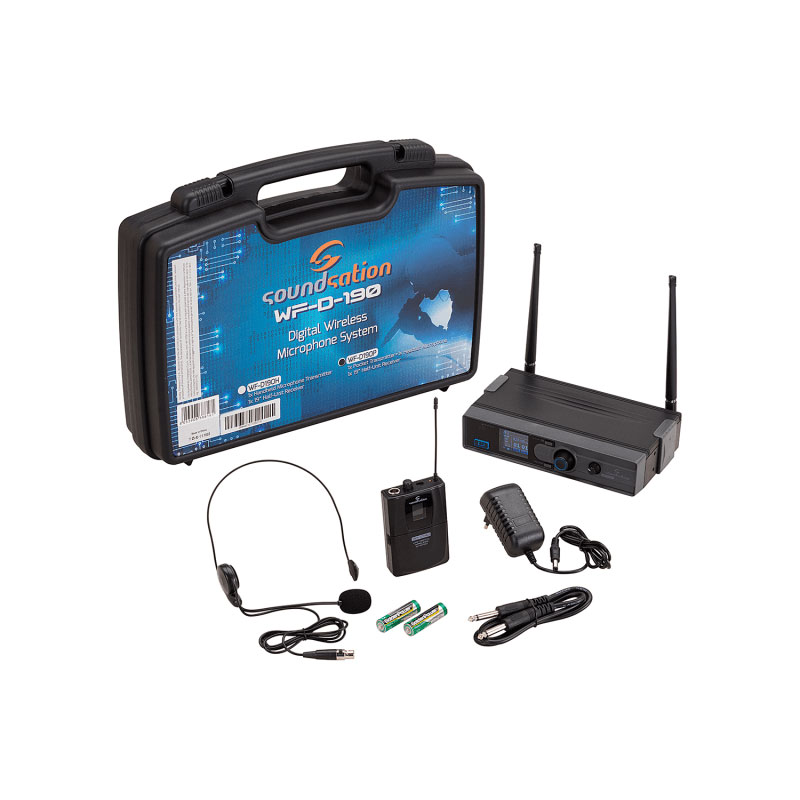

SOUNDSATION WF-D190P MKII 90-channel UHF Digital Wireless System With Bodypack And Headset Microphone

Description

SOUNDSATION WF-D190P MKII 90-channel UHF Digital Wireless System With Bodypack And Headset Microphone

• System Carrier Frequency

  UHF823-832MHz
• System Bandwidth

  9MHz
• System Channel Bandwidth

  100kHz
• Preset Group/Channel

  10 groups, 9 frequencies in each group
• Dynamic Range

  >98dB
• Total Harmonic Distortion

  <0.1%
• Frequency Response

  30Hz-20kHz / ±2dB
• Audio Output Level

  Balanced 400mV; Unbalanced 400mV
• System Packing Dimensions (WxHxD)

  436 x 104 x 324 mm
• System Packing Gross Weight

  2.5 kg
• Power Supply

  DC 12V / 1000mA
• Receiver Consume Power

  5W
• Receiver Signal/Noise Ratio

  >98dB
• Receiving Sensitivity

  -95dBm
• Transmission Delay

  <3ms
• Receiver Dimensions (WxHxD)

  210 x 45 x 118 mm (antennas not incl.)
• Receiver Antennas

  255 mm (not bent) with BNC connectors
• Receiver Net Weight

  0.4 kg
• Transmitter Power

  10mW (Max)
• Modulation Type

  DQPSK
• Battery Voltage Bodypack Transmitter:3V (2×1.5V AA Battery)
• Transmitter Continuous Using

  5 hours (HI Trans. power); 7 hours (LO Trans. power)
• Pocket Transmitter Dimensions (WxHxD)

  62 x 103 x 30 mm
• Antenna (W/DxH)

  Ø3 x 9 mm
• Pocket Transmitter Net Weight

  0.132 kg (batteries included)
