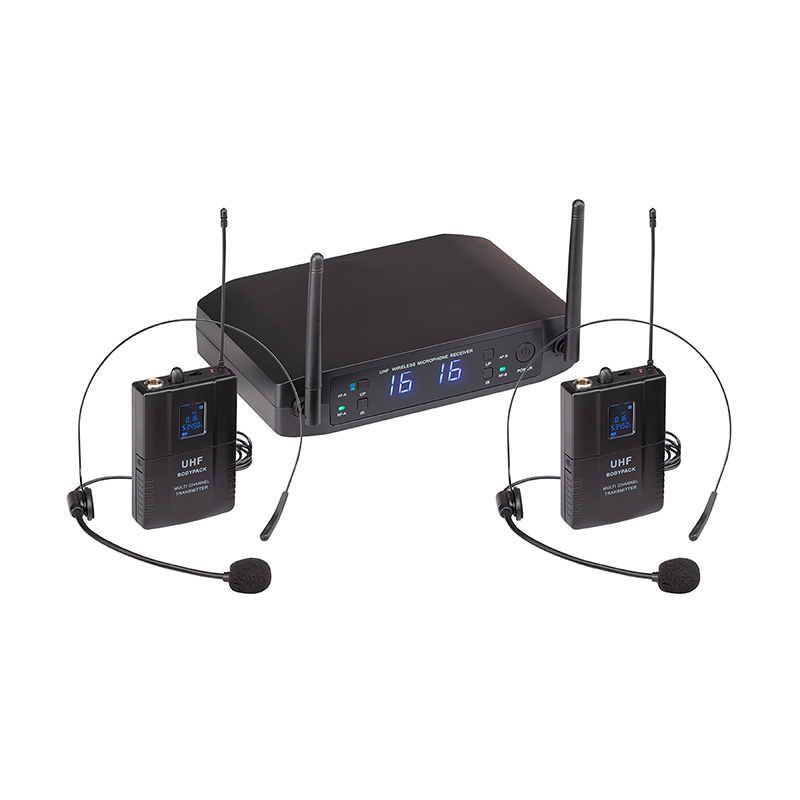

SOUNDSATION WF-U216PP UHF DOUBLE 16-Channel Wireless System With 2 Headset Mics And 2 Bodypacks

239.00

In stock

SKU: J244J Categories: ,

Description

SOUNDSATION WF-U216PP UHF DOUBLE 16-Channel Wireless System With 2 Headset Mics And 2 Bodypacks

The WF-U216 is a UHF dual wireless microphone system with 16 channels each. Its main characteristics are reliability, audio quality and extreme simplicity of use. It’s been designed for all those professionals who need a ready-to-use tool, always. Despite its minimalist look, the WF-U216 is a concentrate of technology, capable of integrating a high-quality microphone preamp stage, a DSP-based audio processing, a PLL synthesis stage, and other functions in a single chip. Compared to analog systems, it significantly improves the stability and reliability of the FM modulation section, the AF and audio stages, offering professional level music performance. The WF-U216 is also equipped with the IR synchronization system, for quick coupling between the receiver and transmitter. Both the hand transmitter and the pocket transmitter can work with AA alkaline or rechargeable batteries. The quality of the headset cardioid capsule (condenser) is professional.

Specifications

Carrier FrequencyUHF 520-550MHz
Frequency StabilizationAutomatic calibration
Dynamic Range>90dB
Total Harmonic Distortion<0.4%
Frequency Response40Hz-15KHz ±3dB
System Audio Output LevelBalanced 400mV; Unbalanced 400mV
System Packing Dimensions (WxDxH)380 x 285 x 65 mm
System Packing Gross Weight1.2 kg
Receiver Power AdapterDC 12V / 1000mA
Receiver Consume Power<4W
Receiver Signal/Noise Ratio>95dB
Receiving Sensitivity-95dBuV
Receiver De-Emphasis75uS
Receiver Size (WxDxH)210 x 155 x 43 mm
Receiver Antennas Height115 mm
Receiver Net Weight0.345 kg
Transmitter Power10mW (Max)
Transmitting Modulation TypeFM
Transmission Max Deviation±26KHz
Transmission Spurious Emission>40dB
Transmitter Battery Voltage2×1.5V AA Alkaline Batteries or 2×1.2V Rechargeable
Transmitter Continuous Usingabout 5 hours
Pocket Transmitter Size (WxDxH)62 x 30 x 103 mm
Pocket Transmitter Antenna (W/DxH)Ø3 x 10 mm
Pocket Transmitter Net Weight0.133 kg (batteries included)

Additional information

Weight 1 kg
Brand
