Description

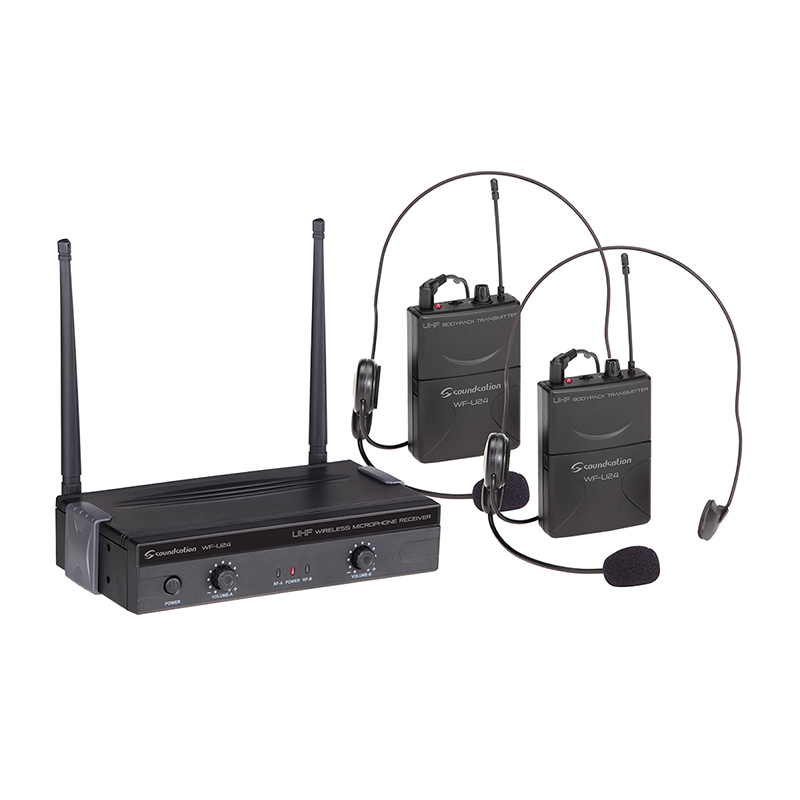

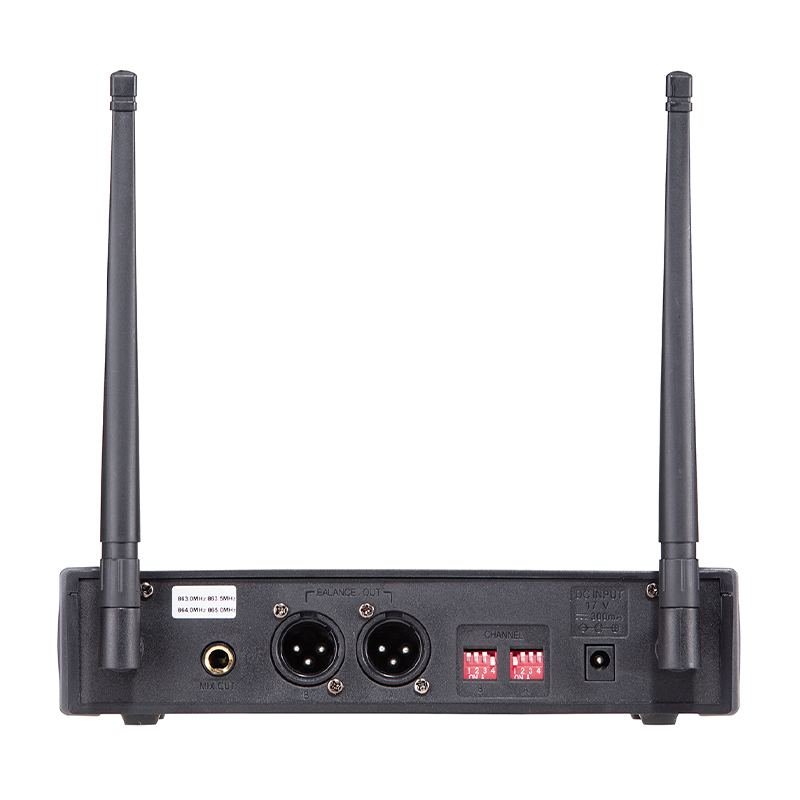

SOUNDSATION WF-U24PP 2x 4-Channel UHF Wireless System With 1 receiver, 2 Pocket Transmitters And 2 Headsets
WIREFREE series wireless systems adopt the fully integrated solution single chip, integrated microphone amplifier, audio based on DSP processor, PLL frequency synthesizer, etc. This allows us to offer highly professional performance yet cost-effective products to everyone.
Specifications
Carrier Frequency | UHF 863-865MHz |
Frequencies | 863.000 MHz / 863.500 MHz / 864.000 MHz / 865.000 MHz |
Frequency Stabilization | Automatic calibration |
Dynamic Range | > 90dB |
Total Harmonic Distortion | < 0.4% |
Frequency Response | 40Hz-15KHz ±3dB |
Receiver Power Supply | DC17V – 300mA |
Receiver Power Consumption | < 4W |
Receiver Signal/Noise Ratio | > 95dB |
Receiving Sensitivity | >7dBuV (SINAD=30dB) |
Transmitter Power | 10mW |
Modulation Type | FM |
Max Deviation | ±20KHz |
Battery Voltage | 3V (2×1.5V AA Battery) |
Battery Continuum Using | 5 hours |
Packing Dimension (WxHxD) | 375 x 285 x 65 mm |
Packing Gross Weight | 1.6kg |
Pocket Transmitter Dimension (WxHxD) | 62 x 103 x 30 mm |
Pocket Transmitter Antenna (W/DxH) | Ø3 x 9 mm |
Pocket Transmitter Net Weight | 0.135kg |
Headset Microphone Net Weight | 0.05kg |
