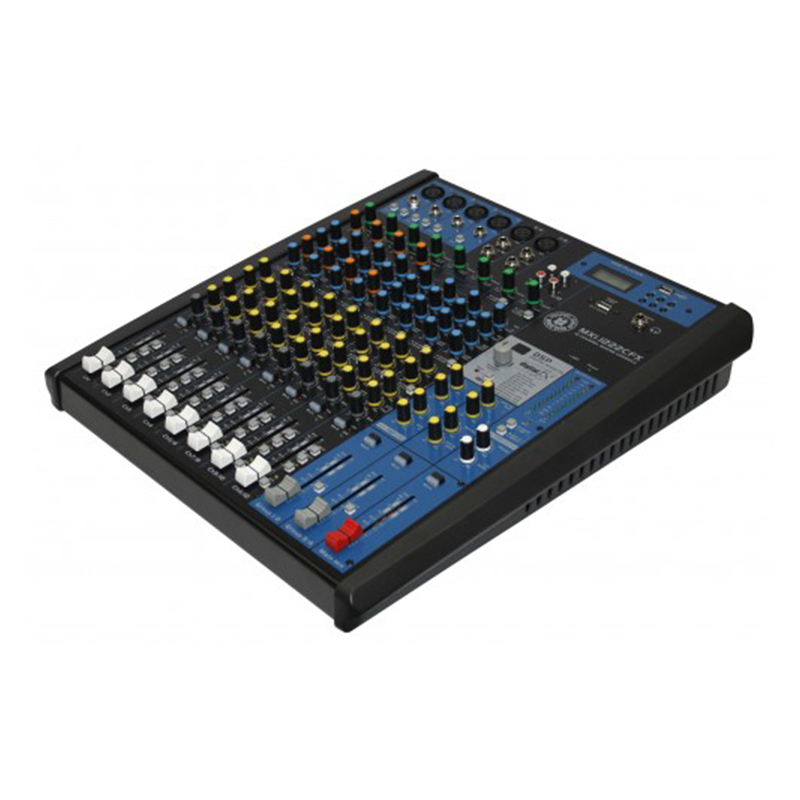

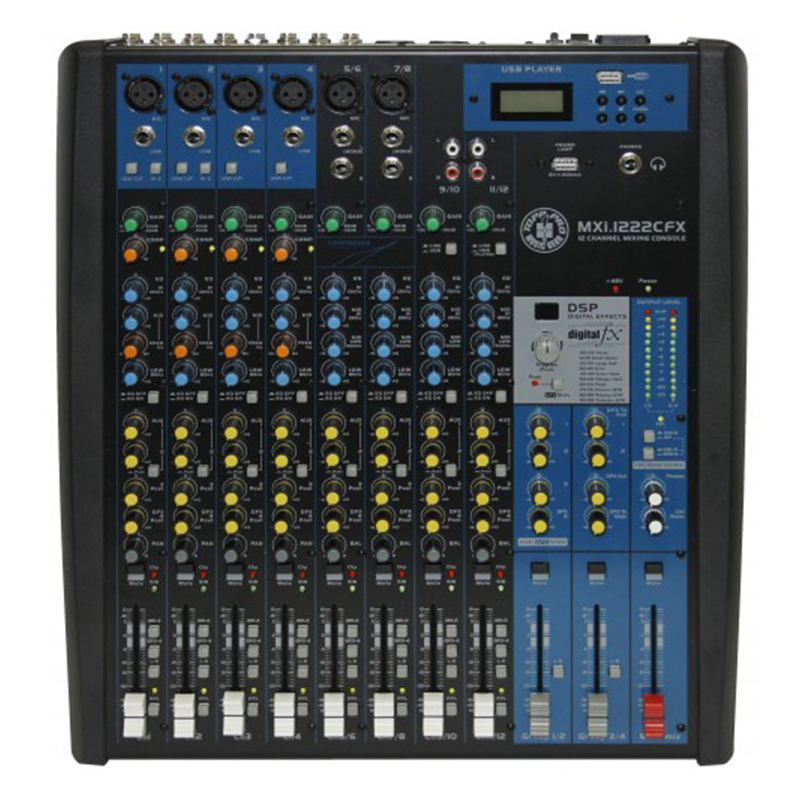

TOP PRO MXI1222CFX 12 Chanel Audio Mixer With EFX Processor

549.00

In stock

SKU: MXI1222CFX Category: Brand:

Description

MXI1222CFX 12 Chanel Audio Mixer With EFX Processor

TP MXI1222CFX
Mono channels
Microphone input XLR with balanced
Frequency response 10Hz to 55KHz, + / – 3dB
Distortion (THD + N) <0.03% at + 0dB, 22Hz ~ 22KHz A-weighted
Gain range 0dB to 50dB
Max. Input +21 dB
LOW CUT 75Hz
SNR <-100dBr A-weighted
Phantom power + 48V with switch control
Line input 1/4 ”TRS with balanced
Frequency response 10Hz to 55KHz, + / – 3dB
Distortion (THD + N) <0.03% at + 0dB, 22Hz ~ 22KHz A-weighted
Sensitivity range + 20dB ~ -30dB
Compressor GAIN: 0 ~ 9dB / THRESHOLD: 20dB —> 5dB
Stereo input channels
Mic input XLR with balanced
Line input 1/4 ‘TRS with balanced
Frequency response 10Hz to 55KHz, +/- 3dB
Distortion (THD + N) <0.03% at + 0dB, 22Hz ~ 22KHz A-weighted
Sensitivity range + 20dBu ~ -30dBu
SNR <-100dBr A-weighted
RCA input channels
RCA input RCA with un-balanced
Frequency response 10Hz to 55KHz, + / – 3dB
Distortion (THD + N) <0.03% at + 0dB, 22Hz ~ 22KHz A-weighted
Sensitivity range + 20dBu ~ -30dBu
SNR <-100dBr A-weighted
Channels EQ
Channel Mono / Stereo
High +/- 15dB @ 12KHz / +/- 15dB @ 12KHz
Mid +/- 15dB @ 100KHz -8KHz / +/- 15dB @ 3KHz or +/- 15dB @ 500Hz
low +/- 15dB @ 80Hz / +/- 15dB @ 80Hz
Impedances
Microphone input 1.8K Ω
All other input 10K Ω or greater
Tape out 1K Ω
All other out 120 Ω
DSP section (options)
A / D and D / A converters 24bit
Type of effects Vocal, Small Room, Large Hall, Echo, Echo + Verb, Flange + Verb, Plate, Chorus + GTR, Rotary + GTR, Tremolo + GTR
Controls 100 position preset selector (10 preseter * 10 variations), Mute switch & Foot-switching with LED indicator
FOOT-SW TIP: FX – SLEEVE: GND
Main mix section
Max. MAIN MIX output + 26dBu XLR balanced (+ 20dBu un-balanced)
AUX range OFF to + 10dB
Fader range OFF to + 10dB
PHONES / CONTROL-ROOM range OFF to + 10dB
Hum & Noise <-80dB @ 20Hz ~ 22KHz A-weighted, 1 channel & MAIN level: 0dB, the other: Minimum
Crosstalk <-80dB @ 0dB 20Hz ~ 22KHz A-weighted, MAIN level: 0dB, the other: minimum
Power supply
Main voltage 100-240V ~ 50 / 60Hz
Fuse T1.25A AC250V
Rated power consumption 30W

Additional information

Weight 1.5 kg
