Description

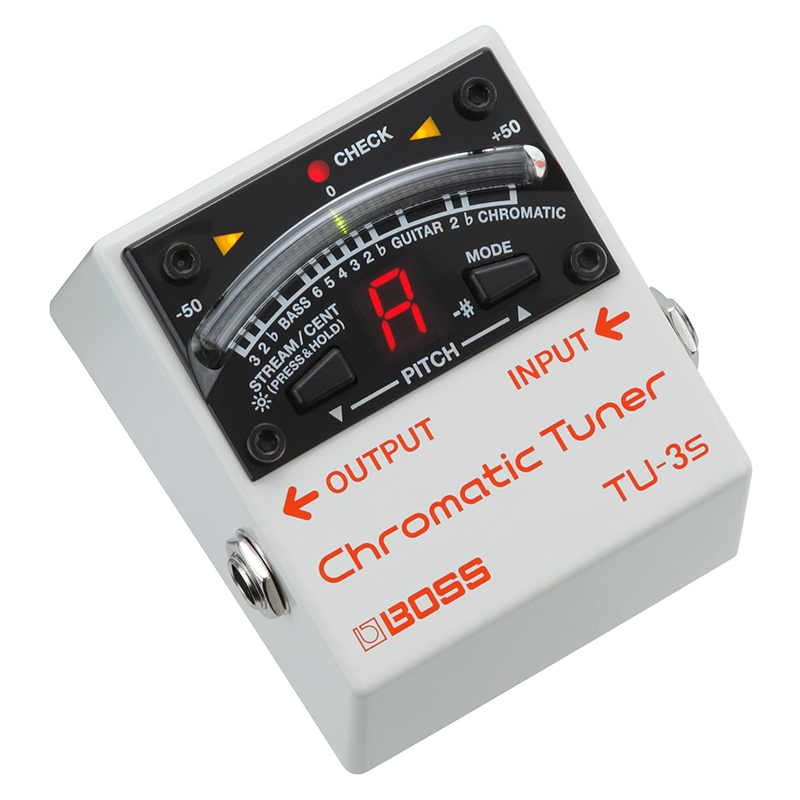

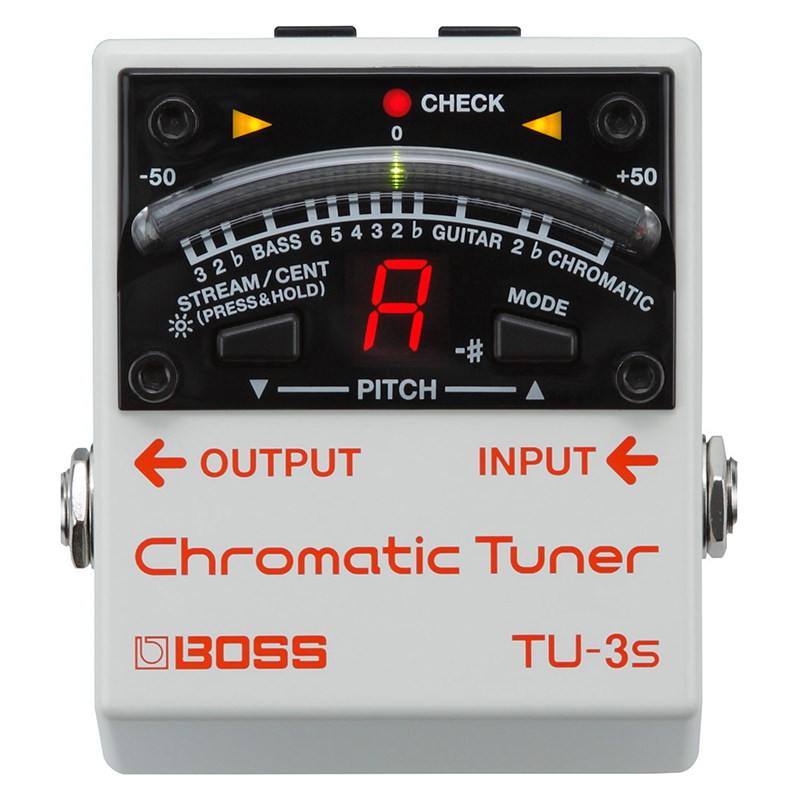

TU-3S Chromatic Tuner Pedal
The BOSS TU-3 is the world’s go-to stompbox tuner, trusted by players everywhere for its reliable operation and bulletproof durability. Scaled down in size, the TU-3S gives you the same industry-standard performance in a tiny footprint that saves precious pedalboard space. The display and tuning functions are identical to the TU-3—the only thing eliminated is the pedal switch. Always on and ready to go, the TU-3S is perfect for use with pedal switching systems like the BOSS ES-8 and ES-5, and ideal for any setup where space is at a premium
Specifications
Tuning Range
C0 (16.35 Hz)–C8 (4,186 Hz)
Reference Pitch
A4 = 436–445 Hz (1 Hz step)
Tuning Accuracy
+/- 1 cent
Modes
Chromatic
Chromatic flat x2
Guitar
Guitar flat x2
Bass
Bass flat x3
Display mode
Cent mode
Stream mode
Power Supply
AC adaptor (sold separately)
Current Draw
35 mA (DC 9 V)
95 mA (DC 9 V, when High Brightness mode is on)
Bypass
Buffered bypass
Controls
MODE button
STREAM/CENT button
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Indicator
CHECK indicator (Power on indicator)

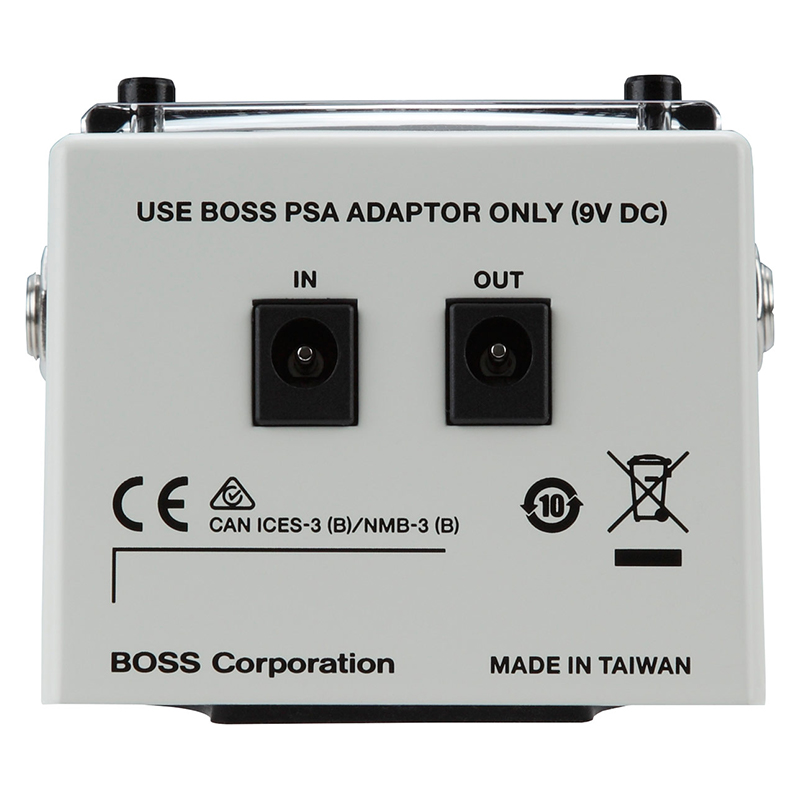

Connectors
INPUT jack
OUTPUT jack
DC IN jack
DC OUT jack
Accessories
Owner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”)
Parallel DC code (DC Plug x2)
Rubber foot
Options (sold separately)
AC adaptor: PSA series
Parallel DC cord: PCS-20A (DC Plug x8)
Size And Weight
Width
73 mm
Depth
84 mm
Height
56 mm
Weight (including battery)
220 g
