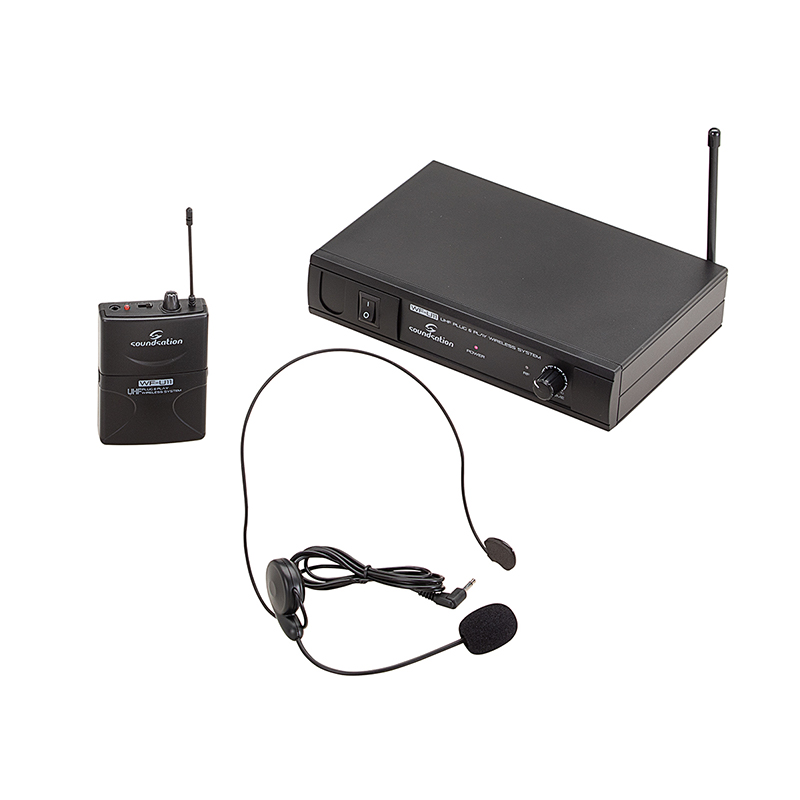

WF-U11PB UHF Plug Play Wireless Microphone System with Bodypack and Headset Freq. 863.55 MHz

98.00

Out of stock

SKU: E052E Category: Brand:

Description

WF-U11PB UHF Plug Play Wireless Microphone System with Bodypack and Headset Freq. 863.55 MHz

SOUNDSATION WF-11 is the answer to all those who need a reliable, high-quality sound, and easy to use wireless microphone system.

Specifications

Carrier Frequency UHF 863-865MHz
Available Frequencies 863.05 MHz, 864.15 MHz, 863.55 MHz, 865.00 MHz (WF-U11PB Freq. is 863.55 MHz)
Frequency Stabilization Automatic calibration
Dynamic Range > 90dB
Total Harmonic Distortion < 0.5%
Frequency Response 40 – 18500 Hz / ±3dB
Packing Dimensions (WxHxD) 436 x 104 x 324 mm
Packing Gross Weight 2.0 kg
Power Supply DC12V, 400mA
Consumption < 4W
Signal/Noise Ratio > 95dB
Border Upon Channel Rejection > 80dB
Receiving Sensitivity 10dBuV
De-Emphasis 75uS
Audio Output Level Balanced 400mV; Unbalanced 400mV
Dimensions (WxHxD) 211 x 43 x 115 mm (antennas not incl.)
Antenna 120 mm (not bent)
Net Weight 0.295 kg
Transmitter Power 10mW
Modulation Type FM
Deviation 37KHz
Spurious Emission > 30dB
Battery Voltage 3V (2×1.5V AA-Type Batteries)
Continuous Using 5 hours
Pocket Trans. Dimensions (WxHxD) 62 x 103 x 30 mm
Antenna (W/DxH) Ø3 x 9 mm
Pocket Transmitter Net Weight 0.132 kg (batteries included)

Additional information

Weight 0.3 kg
